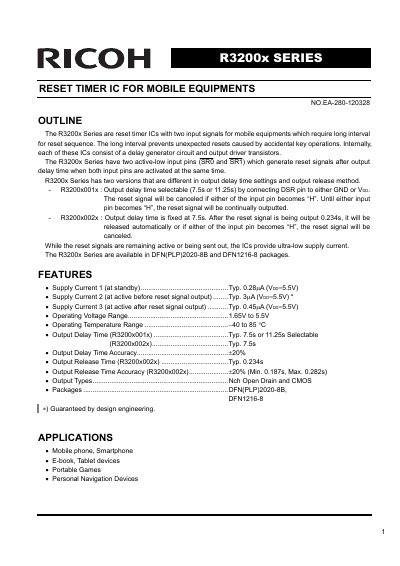

Ricoh R3200x Series Reset Timer IC Datasheet
The Ricoh R3200x Series consists of reset timer integrated circuits designed for mobile equipment that require long intervals for reset sequences to prevent unexpected resets from accidental key operations. These ICs feature two active-low input pins (SRO and SR1) which generate a reset signal after a specific output delay time when both are activated simultaneously.
The series is available in two versions with different configurations: the R3200x001x version allows selectable output delay times of 7.5s or 11.25s via an external pin connection, while the R3200x002x version has a fixed 7.5s delay time. Both versions offer ultra-low supply current during reset signal activity and are available in DFN(PLP)2020-8B and DFN1216-8 packages.
Ricoh R3200X specifications
| Operating Voltage Range | 1.65V to 5.5V |
|---|---|
| Operating Temperature Range | -40 to 85 °C |
| Output Delay Time (R3200x001x) | 7.5s or 11.25s Selectable |
| Output Delay Time (R3200x002x) | Fixed at 7.5s |
| Output Release Time (R3200x002x) | Typ. 0.234s |
| Output Types | Nch Open Drain and CMOS |
All Ricoh R3200X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for the R3200x Series?
The ICs are suitable for mobile phones, smartphones, e-books, tablet devices, portable games, and personal navigation devices.
How is the output delay time selected for the R3200x001x version?
The delay time is selectable by connecting the DSR pin to either GND (for 7.5s) or Voo (for 11.25s).
What are the two versions of the R3200x series?
The R3200x001x has selectable output delay times, while the R3200x002x has a fixed output delay time.
What is the output delay time for the R3200x002x version?
The output delay time is fixed at 7.5s for the R3200x002x version.
