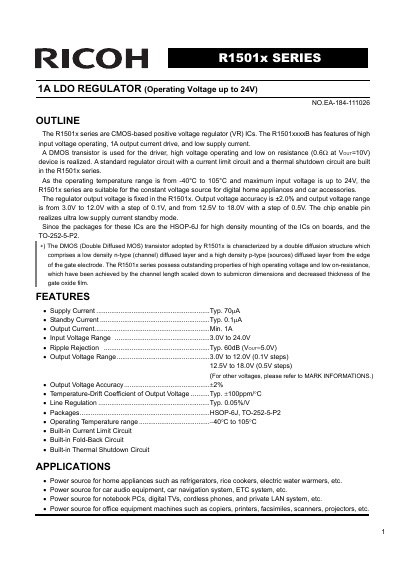

Ricoh R1501x Series 1A LDO Regulator Datasheet
The R1501x series are CMOS-based positive voltage regulator (VR) ICs designed for high input voltage operation up to 24V with a 1A output current drive. These devices utilize a DMOS transistor for low on-resistance and include built-in protection circuits such as current limit, fold-back, and thermal shutdown.
Read onlineRicoh R1501X specifications
| Input Voltage Range | 3.0V to 24.0V |
|---|---|
| Operating Temperature Range | -40°C to 105°C |
| Packages | HSOP-6J, TO-252-5-P2 |
