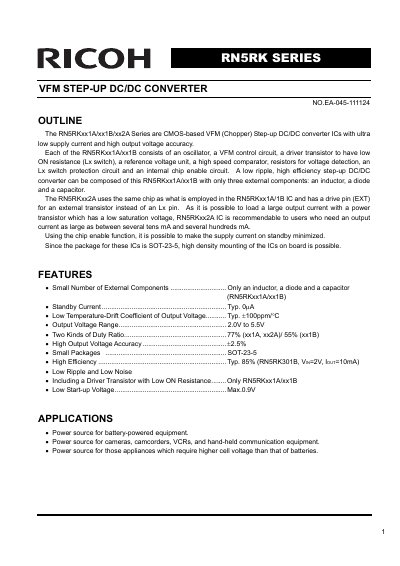

Ricoh RN5RK Series VFM Step-Up DC/DC Converter Datasheet
The RN5RKxx1A/xx1B/xx2A Series are CMOS-based VFM (Chopper) Step-up DC/DC converter ICs designed for ultra-low supply current and high output voltage accuracy. The RN5RKxx1A/xx1B models include an internal driver transistor with low ON resistance, while the RN5RKxx2A model utilizes an external transistor drive pin to support larger output currents. These ICs are packaged in SOT-23-5 for high-density mounting.
Read onlineRicoh RN5RK specifications
| Output Voltage Range | 2.0V to 5.5V |
|---|---|
| Output Voltage Accuracy | ±100ppm/°C |
| Operating Temperature Range | -40 to 85 °C |
| Package Type | SOT-23-5 |
| Oscillator Frequency | 80 to 120 kHz |
Source: Ricoh RN5RK Series VFM Step-Up DC/DC Converter Datasheet
All Ricoh RN5RK documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What external components are required for the RN5RKxx1A/xx1B?
Only an inductor, a diode, and a capacitor are required.
From: Ricoh RN5RK Series VFM Step-Up DC/DC Converter Datasheet
What is the difference between RN5RKxx1A/xx1B and RN5RKxx2A?
The xx2A model uses an external transistor drive pin instead of an internal Lx pin to support larger output currents.
From: Ricoh RN5RK Series VFM Step-Up DC/DC Converter Datasheet
What external components are required to configure the RN5RK Series converter?
The converter can be configured using an inductor, a diode, and a capacitor as external components.
From: Ricoh RN5RK Series 8V Input VFM Step-up DC/DC Converter Datasheet
What is the maximum input voltage range for the RN5RK Series?
The maximum input voltage range is 8.0V.
From: Ricoh RN5RK Series 8V Input VFM Step-up DC/DC Converter Datasheet
