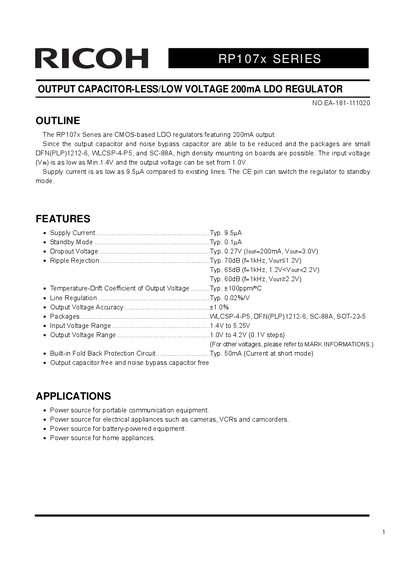

Ricoh RP107x Series CMOS LDO Regulator Datasheet
The Ricoh RP107x Series are CMOS-based Low Dropout (LDO) regulators designed for high-density mounting on printed circuit boards. These regulators feature a 200mA output current and support input voltages as low as 1.4V, with an output voltage range from 1.0V to 4.2V. The series is available in four compact packages: WLCSP-4-P5, DFN(PLP)1212-6, SC-88A, and SOT-23-5. A key feature is the ability to operate without output or noise bypass capacitors, although the datasheet provides guidelines for capacitor selection to ensure stability and low noise levels.
Read onlineRicoh RP107X specifications
| Supply Current | 9.5uA |
|---|---|
| Output Current | 200mA |
| Input Voltage Range | 1.4V to 5.25V |
| Dropout Voltage | 0.27V |
| Ripple Rejection | 65dB |
| Operating Temperature Range | -40 to 85 °C |
| Output Voltage Accuracy | 1.0% |
All Ricoh RP107X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available packages for the RP107x series?
The series is available in WLCSP-4-P5, DFN(PLP)1212-6, SC-88A, and SOT-23-5 packages.
Can the RP107x regulator operate without an output capacitor?
Yes, the regulator is designed to be output capacitor free and noise bypass capacitor free.
What is the maximum output current of this regulator?
The RP107x Series features a 200mA output.
From: Ricoh RP107x Series Output Capacitor-less LDO Datasheet
What is the minimum input voltage required for operation?
The input voltage can be as low as 1.4V.
From: Ricoh RP107x Series Output Capacitor-less LDO Datasheet
