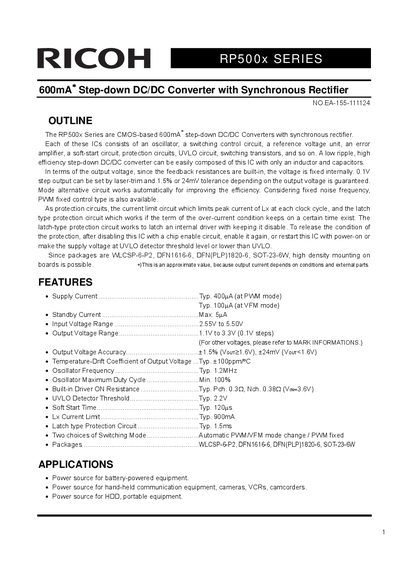

Ricoh RP500x Series Step-Down DC/DC Converter Datasheet
The RP500x Series consists of CMOS-based 600mA step-down DC/DC converters with synchronous rectifiers. Each IC integrates an oscillator, switching control circuit, reference voltage unit, error amplifier, soft-start circuit, protection circuits, UVLO circuit, and switching transistors. A low ripple, high-efficiency converter can be easily composed using this IC along with only an inductor and capacitors.
The series features built-in feedback resistors that fix the output voltage internally, allowing 0.1V step adjustments via laser trim. It supports automatic mode alternative circuits for improved efficiency or fixed PWM control. Protection includes a current limit circuit and a latch-type protection circuit. The IC is available in WLCSP-6-P2, DFN1616-6, DFN(PLP)1820-6, and SOT-23-6W packages.
Ricoh RP500X specifications
| Output Current | 600mA (Typical) |
|---|---|
| Input Voltage Range | 2.55V to 5.50V |
| Output Voltage Range | 1.1V to 3.3V (0.1V steps) |
| Oscillator Frequency | Typ. 1.2MHz |
| Operating Temperature Range | -40 to 85 °C |
| Packages | WLCSP-6-P2, DFN1616-6, DFN(PLP)1820-6, SOT-23-6W |
Source: Ricoh RP500x Series Step-Down DC/DC Converter Datasheet
All Ricoh RP500X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available packages for the RP500x Series?
The series is available in WLCSP-6-P2, DFN1616-6, DFN(PLP)1820-6, and SOT-23-6W packages.
From: Ricoh RP500x Series Step-Down DC/DC Converter Datasheet
Can the output voltage be adjusted in small steps?
Yes, a 0.1V step output can be set by laser trim.
From: Ricoh RP500x Series Step-Down DC/DC Converter Datasheet
What control types are available for the RP500x series?
The series can be selected from fixed PWM control or PWM/VFM auto switching control.
From: Ricoh RP500x Series Step-down DC/DC Converter Datasheet
What is the maximum output current?
The maximum output current is approximately 600mA.
From: Ricoh RP500x Series Step-down DC/DC Converter Datasheet
