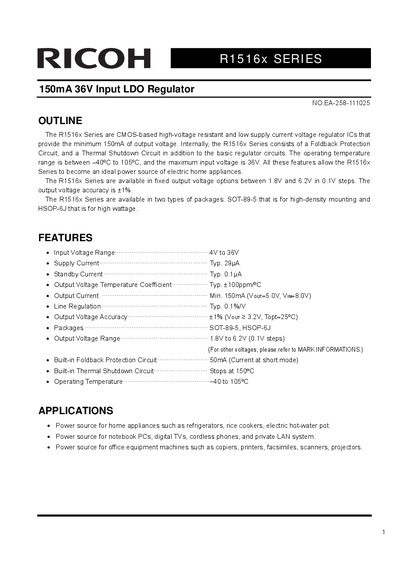

Ricoh R1516x Series LDO Regulator Datasheet
The R1516x Series are CMOS-based high-voltage resistant and low supply current voltage regulator ICs that provide a minimum of 150mA output. Internally, the series consists of a Foldback Protection Circuit and a Thermal Shutdown Circuit in addition to basic regulator circuits. The operating temperature range is between -40°C to 105°C, and the maximum input voltage is 36V.
Read onlineRicoh R1516X specifications
| Supply Current | Typ. 29uA |
|---|---|
| Output Voltage Range | 1.8V to 6.2V |
| Operating Temperature Range | -40 to +105 °C |
| Input Voltage | 4 to 36 V |
| Output Current | Min. 150mA |
| Output Voltage Accuracy | +/- 1% |
All Ricoh R1516X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum output current of the R1516x Series?
The R1516x Series provides a minimum of 150mA of output voltage.
What protection circuits are built into the R1516x Series?
The series includes a Foldback Protection Circuit and a Thermal Shutdown Circuit.
What are the available output voltage options?
The R1516x Series are available in fixed output voltage options between 1.8V and 6.2V in 0.1V steps.
What packages are available for the R1516x Series?
The series is available in SOT-89-5 for high-density mounting and HSOP-6J for high wattage.
