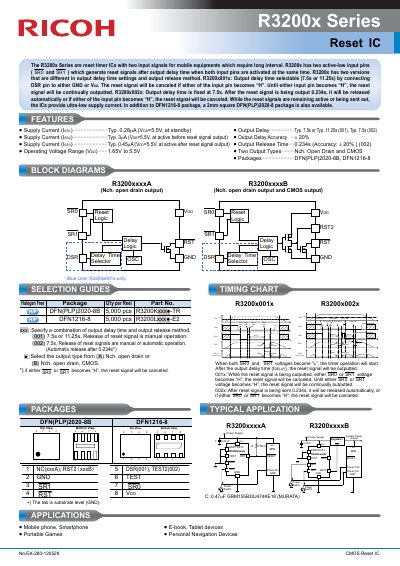

R3200x Series are reset timer ICs with two input signals for mobile equipments which require long interval.
The Ricoh R3200x Series are reset timer ICs designed for mobile equipment requiring long interval reset signals. These devices feature two active-low input pins (SRO and SR1) that generate reset signals after a specific output delay time when both inputs are activated simultaneously. The series offers two versions: the R3200x001x with selectable output delay times and the R3200x002x with a fixed output delay time.
| Supply Current (Iss1) | Typ. 0.28nA |
|---|---|
| Supply Current (Iss2) | Typ. 3A |
| Supply Current (Iss3) | Typ. 0.45A |
| Output Delay (001) | 7.5s or 11.25s |
| Output Delay (002) | 7.5s |
| Operating Voltage Range | -1.65V to 5.5V |
| Packages | DFN(PLP)2020-8B, DFN1216-8 |
The R3200x001x has selectable output delay times, while the R3200x002x has a fixed output delay time.
The output delay time is fixed at 7.5s for the R3200x002x version.
They are intended for mobile phones, smartphones, e-books, tablet devices, portable games, and personal navigation devices.
