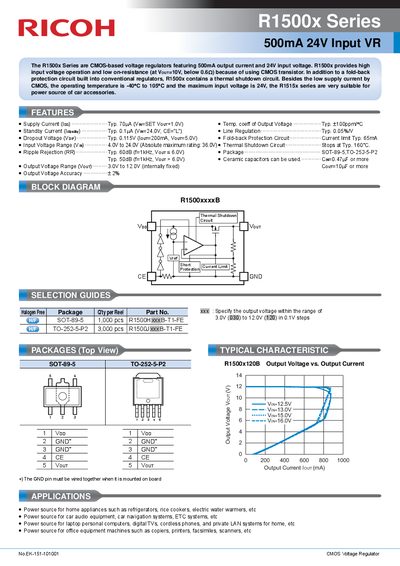

Ricoh R1500x Series 500mA 24V Input VR Datasheet
Datasheet 2 pages · 378 KB · EN
The Ricoh R1500x Series are CMOS-based voltage regulators designed for high input voltage operation and low on-resistance. They feature a fold-back protection circuit and a thermal shutdown circuit to protect against overheating and short circuits. The series supports an input voltage range of 4.0V to 24.0V (absolute maximum 36.0V) and operates within a temperature range of -40°C to 105°C.
Read onlineRicoh R1500X specifications
| Output Current | 500mA |
|---|---|
| Input Voltage Range | 4.0V to 24.0V |
| Absolute Maximum Input Voltage | 36.0V |
| Operating Temperature | -40°C to 105°C |
| Thermal Shutdown Temperature | Typ. 160°C |
| Standby Current | Typ. 0.1pA |
| Package Types | SOT-89-5, TO-252-5-P2 |
All Ricoh R1500X documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available package types for this series?
The available packages are SOT-89-5 and TO-252-5-P2.
What is the maximum input voltage for the R1500x Series?
The absolute maximum rating for the input voltage is 36.0V.
What is the maximum input voltage for the R1500x series?
The maximum input voltage is up to 24V.
Does the R1500x series include built-in protection circuits?
Yes, it includes built-in current limit, fold-back, and thermal shutdown circuits.
