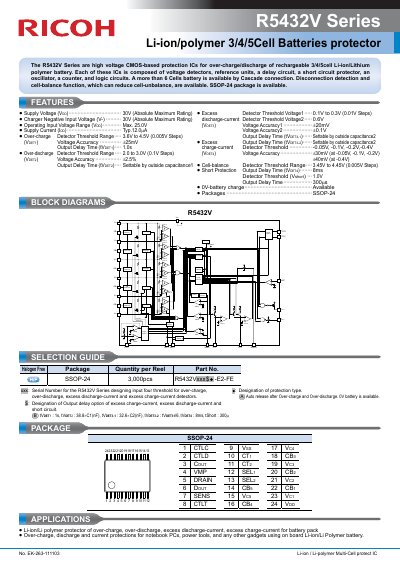

RICOH R5432V Series Li-ion/polymer 3/4/5Cell Batteries protector Manual
The Ricoh R5432V Series consists of high-voltage CMOS-based protection integrated circuits designed for over-charge and over-discharge protection of rechargeable 3, 4, or 5-cell Li-ion and Lithium polymer battery packs. These ICs integrate voltage detectors, reference units, delay circuits, short circuit protectors, oscillators, counters, and logic circuits. A cascade connection allows for the creation of protection circuits for batteries with more than 6 cells. The series also features disconnection detection and a cell-balance function to reduce cell unbalance, available in an SSOP-24 package.
Read onlineRicoh 5CELL specifications
| Over-charge Detector Threshold Range | 3.6V to 4.5V |
|---|---|
| Over-discharge Detector Threshold Range | 2.0 to 3.0V |
| Cell-balance Detector Threshold Range | ABV to 4.45V |
| Package Type | SSOP-24 |
Source: RICOH R5432V Series Li-ion/polymer 3/4/5Cell Batteries protector Manual
