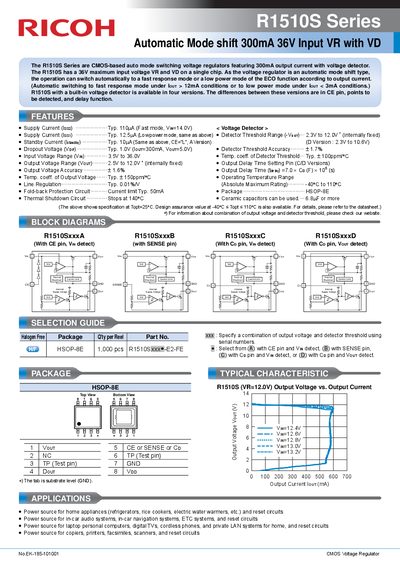

Ricoh R1510S Series CMOS Voltage Regulator Datasheet
The R1510S Series are CMOS-based automatic mode shift voltage regulators featuring a 300mA output current and a built-in voltage detector. The device operates with a maximum input voltage of 36V and automatically switches between a fast response mode and a low power ECO function mode based on the output current.
Read onlineRicoh R1510S specifications
| Output Current | 300mA |
|---|---|
| Input Voltage Range | 3.5V to 36.0V |
| Output Voltage Range | 2.5V to 12.0V |
| Package Type | HSOP-8E |
| Dropout Voltage | Typ. 1.0V |
Source: Ricoh R1510S Series CMOS Voltage Regulator Datasheet
All Ricoh R1510S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the automatic switching condition for fast response mode?
The device switches to fast response mode when the output current is greater than 12mA.
What is the automatic switching condition for low power mode?
The device switches to low power mode when the output current is less than 3mA.
What is the maximum output current of the R1510S Series?
The ICs can provide a maximum of 300mA of output current.
What is the switching point for low-power consumption mode?
The IC switches to high-speed mode when lout=12mMA (Typ.) and returns to low-power mode when lout=3mA (Typ.).
