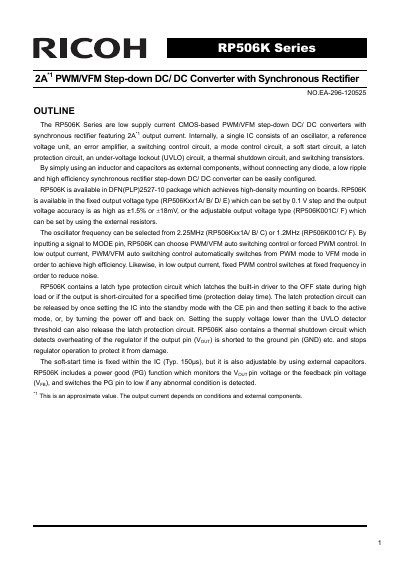

Ricoh RP506K Series Step-down DC/DC Converter Datasheet
The Ricoh RP506K Series consists of low supply current CMOS-based PVWM/VFM step-down DC/DC converters with a synchronous rectifier. These devices feature a 2A output current and are designed to be configured simply by using an inductor and capacitors without connecting any diodes. The series is available in a DFN(PLP)2527-10 package for high-density mounting.
Read onlineRicoh RP506K specifications
| Output Current | 2A |
|---|---|
| Supply Current (Typ) | 48uA |
| Input Voltage Range | 2.5V to 5.5V |
| Package | DFN(PLP)2527-10 |
| Operating Temperature Range | -40 to +85 °C |
Source: Ricoh RP506K Series Step-down DC/DC Converter Datasheet
All Ricoh RP506K documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the output voltage accuracy for the fixed type?
The output voltage accuracy is as high as +1.5% or +18mv.
From: Ricoh RP506K Series Step-down DC/DC Converter Datasheet
Can the RP506K be configured without diodes?
Yes, it can be configured by simply using an inductor and capacitors without connecting any diode.
From: Ricoh RP506K Series Step-down DC/DC Converter Datasheet
What control types are available for the RP506K Series?
The RP506K can be selected from two control types by input signal to the MODE pin: forced PWM control or PWM/VFM auto switching control.
From: Ricoh RP506K Series Step-down DC/DC Converter Datasheet
Which versions have an externally adjustable output voltage?
The 001G/F versions have an externally adjustable output voltage type.
From: Ricoh RP506K Series Step-down DC/DC Converter Datasheet
