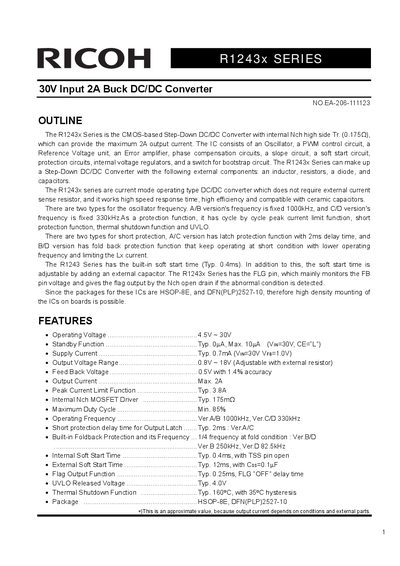

Ricoh R1243x Series 30V Input 2A Buck DC/DC Converter Datasheet
The Ricoh R1243x Series is a CMOS-based Step-Down DC/DC converter designed to provide a maximum output current of 2A. The IC integrates an oscillator, PVM control circuit, reference voltage unit, error amplifier, phase compensation circuits, slope circuit, soft start circuit, and protection circuits, including an internal Nch high-side MOSFET driver. It operates in current mode and does not require an external current sense resistor, offering high-speed response and compatibility with ceramic capacitors.
Read onlineRicoh R1243X specifications
| Operating Voltage | 4.5V ~ 30V |
|---|---|
| Output Voltage Range | 0.8V ~ 18V |
| Feedback Voltage Accuracy | 0.5V with 1.4% accuracy |
| Internal Nch MOSFET Driver Resistance | Typ. 175mQ |
| Operating Frequency (Ver.A/B) | 1000KHz |
| Operating Frequency (Ver.C/D) | 330kKHz |
| Short protection delay time (Latch) | Typ. 2ms |
| Internal Soft Start Time | Typ. 0.4ms |
| Package Types | HSOP-8E, DFN(PLP)2527-10 |
Source: Ricoh R1243x Series 30V Input 2A Buck DC/DC Converter Datasheet
All Ricoh R1243X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the operating frequencies for the R1243x Series?
The A/B version operates at a fixed frequency of 1000KHz, while the C/D version operates at a fixed frequency of 330kHz.
From: Ricoh R1243x Series 30V Input 2A Buck DC/DC Converter Datasheet
Does the R1243x Series require an external current sense resistor?
No, it is a current mode operating type DC/DC converter which does not require an external current sense resistor.
From: Ricoh R1243x Series 30V Input 2A Buck DC/DC Converter Datasheet
What external components are required to configure the converter?
The converter can be configured using an inductor, resistors, a diode, and capacitors as external components.
From: Ricoh R1243x Series 2A 30V Input PWM Step-down DC/DC Converter Datasheet
Can ceramic capacitors be used for the output?
Yes, ceramic output capacitors can be used with the R1243x series.
From: Ricoh R1243x Series 2A 30V Input PWM Step-down DC/DC Converter Datasheet
