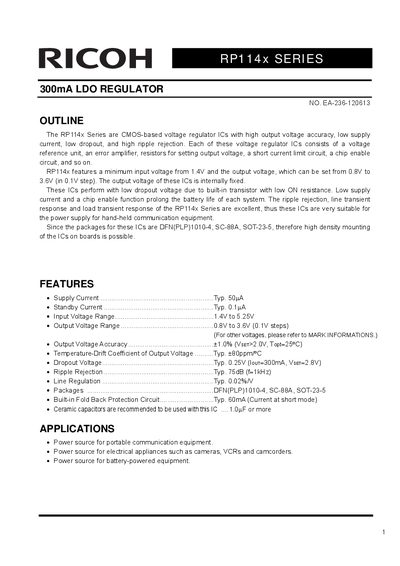

Ricoh RP114x Series 300mA LDO Regulator Datasheet
Datasheet 23 pages · 478 KB · EN
The RP114x Series are CMOS-based voltage regulator ICs designed for applications requiring high output voltage accuracy and low supply current. Key features include a minimum input voltage of 1.4V, an adjustable output voltage range from 0.8V to 3.6V in 0.1V steps, and excellent ripple rejection performance suitable for hand-held communication equipment.
Read onlineRicoh RP114X specifications
| Supply Current (Typ) | 50 uA |
|---|---|
| Standby Current (Typ) | 0.1 pA |
| Input Voltage Range | 1.4V to 5.25V |
| Output Voltage Range | 0.8V to 3.6V (0.1V steps) |
| Output Voltage Accuracy | +/- 20mV (Vset>2.0V) |
| Dropout Voltage (Typ) | 0.25V |
| Ripple Rejection (Typ) | 75dB @ 1kHz |
| Short Current Limit | 60mA |
All Ricoh RP114X documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available packages for the RP114x Series?
The ICs are available in DFN(PLP)1010-4, SC-88A, and SOT-23-5 packages.
What is the recommended output capacitor value?
Ceramic capacitors of 1.0uF or more are recommended to be used with this IC.
What packages are available for the RP114x Series?
The series is available in SOT-23-5, SC-88A, and DFN(PLP)1010-4 packages.
Can ceramic capacitors be used with this regulator?
Yes, ceramic capacitors can be used for the RP114x Series.
