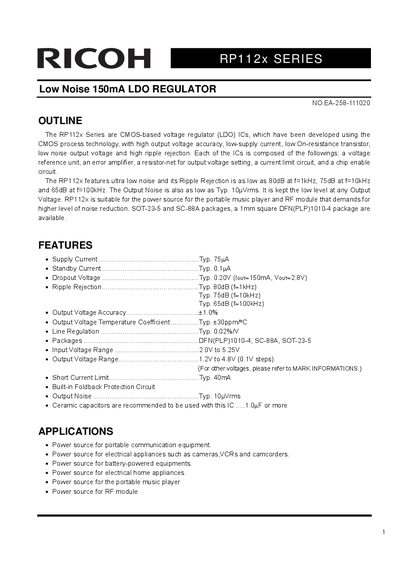

RICOH RP112x Series CMOS Voltage Regulator Datasheet
Datasheet 23 pages · 890 KB · EN
The RICOH RP112x Series are CMOS-based voltage regulator ICs developed using CMOS process technology. They feature high output voltage accuracy, low supply current, low On-resistance transistors, low noise output voltage, and high ripple rejection. The series is available in SOT-23-5, SC-88A, and DFN(PLP)1010-4 packages.
Read onlineRicoh RP112X specifications
| Supply Current (Standby) | 100 pA to 75 pA |
|---|---|
| Dropout Voltage (Typ) | 0.20V |
| Ripple Rejection (Typ) | 80dB at f=1kHz |
| Output Noise (Typ) | 10uVrms |
| Short Current Limit | 40mA |
| Input Voltage Range | 2.0V to 5.25V |
| Output Voltage Range | 1.2V to 4.8V |
| Operating Temperature Range | -40 to 85 °C |
