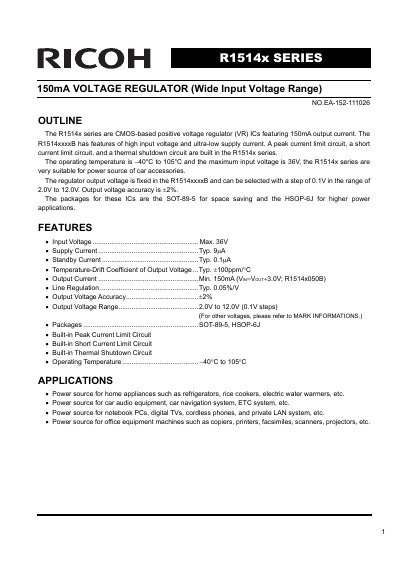

Ricoh R1514x Series Voltage Regulator IC Datasheet
Datasheet 15 pages · 293 KB · EN
The R1514x series are CMOS-based positive voltage regulator (VR) ICs featuring a 150mA output current. These devices include built-in protection circuits such as peak current limit, short current limit, and thermal shutdown. They operate within an input voltage range of up to 36V and a temperature range of -40°C to 105°C.
Read onlineRicoh R1514X specifications
| Output Current | 150mA (typical) |
|---|---|
| Input Voltage Range | 4V to 36V |
| Operating Temperature | -40°C to 105°C |
| Output Voltage Range | 2.0V to 12.0V |
| Output Voltage Accuracy | +2% |
All Ricoh R1514X documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the built-in protection features of the R1514x series?
The series includes a peak current limit circuit, a short current limit circuit, and a thermal shutdown circuit.
What is the typical supply current?
The typical supply current is 9µA when Vin=Vout+3.0V and Iout=0mA.
What is the supply current in standby mode?
The typical standby current is 0.1nA when Vin=36V and CE="L".
What happens if the junction temperature exceeds 150°C?
The regulator stops operation to protect itself from damage caused by a short circuit.
