Start here

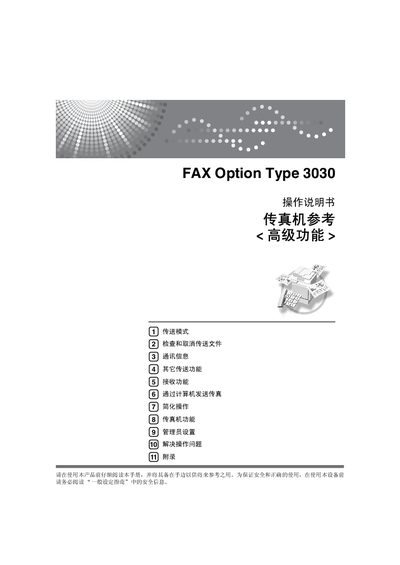

Ricoh Fax Option Type 3030 User Manual
This manual provides detailed instructions for using the Ricoh Fax Option Type 3030, including basic transmission modes, checking and canceling fax jobs, communication settings, and receiving functions. It also covers advanced features such as SUB codes, IP‑Fax configuration, and administrator tools.
Additional sections describe how to send faxes from a computer using the LAN‑Fax driver, simplify operations with preset programs, and configure network settings for Ethernet, Wi‑Fi, and other LAN interfaces. Safety information and troubleshooting tips are included throughout. This manual is written in Chinese.
Ricoh Type 3030 specifications
| Resolution (standard characters) | 200 × 100 dpi |
|---|---|
| Maximum original size | A3 (11" × 17") |
| Power consumption (immediate transmission) | ≈ 180 W |
| Transmission speed (G3 28,800 bps) | 3 seconds per page |
All Ricoh Type 3030 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is a SUB code and when is it used?
A SUB code is a confidential transmission identifier that allows sending faxes to devices that support the same SUB code feature.
Which network protocols are supported for IP‑Fax?
IP‑Fax supports T.38 Annex, TCP, UDP/IP, SIP (RFC 3261) and H.323 v2.
