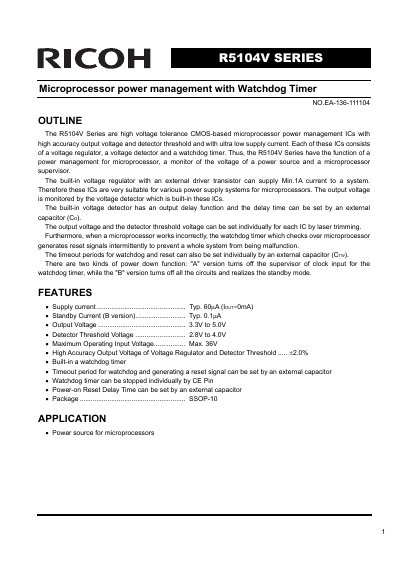

Ricoh R5104V Series Microprocessor Power Management IC Datasheet
The R5104V Series are high voltage tolerance CMOS-based microprocessor power management ICs featuring high accuracy output voltage and detector thresholds with ultra-low supply current. Each IC integrates a voltage regulator, a voltage detector, and a watchdog timer, functioning as a power management unit, power source monitor, and microprocessor supervisor for various microprocessor power supply systems.
Read onlineRicoh R5104V specifications
| Output Voltage | 3.3V to 5.0V |
|---|---|
| Detector Threshold Voltage | 2.8V to 4.0V |
| Maximum Operating Input Voltage | 36V |
| Operating Temperature Range | -40 to +125 °C |
| Output Current | 1.0 A |
Source: Ricoh R5104V Series Microprocessor Power Management IC Datasheet
All Ricoh R5104V documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Can the watchdog timeout period be adjusted?
Yes, the timeout periods for the watchdog and reset can be set individually by an external capacitor (Ctw).
From: Ricoh R5104V Series Microprocessor Power Management IC Datasheet
What is the difference between the 'A' and 'B' versions?
The 'A' version turns off the supervisor of clock input for the watchdog timer, while the 'B' version turns off all circuits to realize standby mode.
From: Ricoh R5104V Series Microprocessor Power Management IC Datasheet
What is the function of the built-in watchdog timer?
It checks over the microprocessor and generates reset signals intermittently to prevent a whole system from malfunctioning.
From: Ricoh R5104V Series Microprocessor Power Management IC Datasheet
How is the output voltage set for each IC?
The output voltage and detector threshold can be set individually by laser trimming.
From: Ricoh R5104V Series Microprocessor Power Management IC Datasheet
