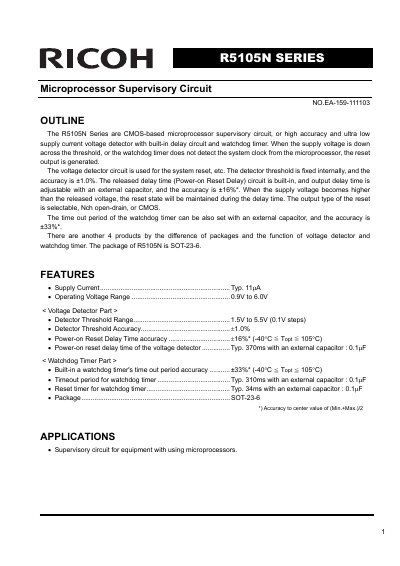

Ricoh R5105N Series Microprocessor Supervisory Circuit Datasheet
The Ricoh R5105N series is a CMOS-based microprocessor supervisory circuit designed as a high accuracy, ultra low supply current voltage detector with built-in delay and watchdog timer. It generates a reset output when the supply voltage drops below a threshold or if the system clock is not detected by the watchdog timer.
The device includes an adjustable power-on reset delay time and a configurable watchdog timeout period, both set via external capacitors. The R5105N is available in SOT-23-6 packages with selectable Nch open-drain or CMOS output types.
Ricoh R5105N specifications
| Operating Voltage Range | 0.9V to 6.0V |
|---|---|
| Detector Threshold Accuracy | +/-1.0% |
| Power-on Reset Delay Time accuracy | +/-16% |
| Watchdog Timer Timeout Period accuracy | +/-33% |
| Package Type | SOT-23-6 |
| Operating Temperature Range | -40 to 105 C |
Source: Ricoh R5105N Series Microprocessor Supervisory Circuit Datasheet
All Ricoh R5105N documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the R5105N series?
It acts as a microprocessor supervisory circuit that generates a reset output when supply voltage drops or the watchdog timer fails to detect the system clock.
From: Ricoh R5105N Series Microprocessor Supervisory Circuit Datasheet
How are the delay times configured?
The power-on reset delay time and watchdog timeout period can be set using an external capacitor connected to specific pins.
From: Ricoh R5105N Series Microprocessor Supervisory Circuit Datasheet
What is the function of the R5105N Series?
The series monitors the power system of devices equipped with microprocessors and prevents system runaway by sending a reset signal when a malfunction occurs.
From: Ricoh R5105N Series CMOS Microprocessor Supervisory IC Datasheet
What is the operating voltage range for the watchdog timer section?
The operating voltage range for the watchdog timer section is 0.9V to 6.0V.
From: Ricoh R5105N Series CMOS Microprocessor Supervisory IC Datasheet
