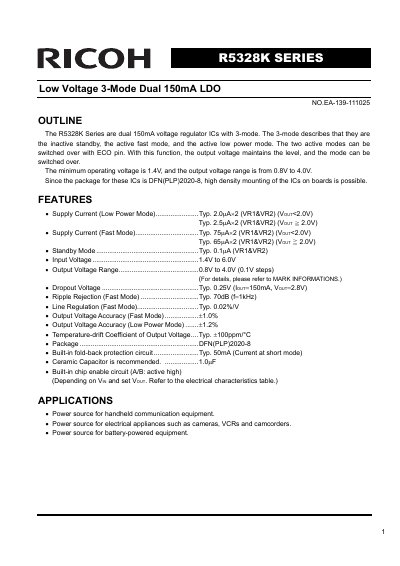

Ricoh R5328K Series Low Voltage LDO Datasheet
The Ricoh R5328K Series consists of dual 150mA voltage regulator ICs featuring three distinct operating modes: inactive standby, active fast mode, and active low power mode. The two active modes can be switched via the ECO pin to maintain output voltage levels while optimizing power consumption based on system requirements.
These devices operate with a minimum input voltage of 1.4V and support an output voltage range from 0.8V to 4.0V in 0.1V steps. The ICs are packaged in the DFN(PLP)2020-8 format, enabling high-density mounting on printed circuit boards.
Ricoh R5328K specifications
| Supply Current (Low Power Mode) | Typ. 2.0uA x2 (Vout<2.0V) |
|---|---|
| Standby Current | Typ. 0.1nA |
| Input Voltage Range | 1.4V to 6.0V |
| Output Voltage Range | 0.8V to 4.0V (0.1V steps) |
| Package Type | DFN(PLP)2020-8 |
| Operating Temperature Range | -40 to 85 °C |
