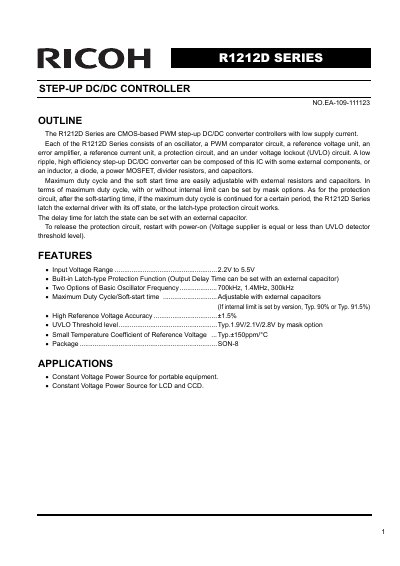

Ricoh R1212D Series Step-Up DC/DC Controller Datasheet
The R1212D Series are CMOS-based PWM step-up DC/DC converter controllers designed with low supply current. The series includes an oscillator, a PWM comparator circuit, a reference voltage unit, an error amplifier, a reference current unit, a protection circuit, and an under voltage lockout (UVLO) circuit.
Read onlineRicoh R1212D specifications
| Input Voltage Range | 2.2V to 5.5V |
|---|---|
| Package Type | SON-8 |
| Operating Temperature Range | -40 to 85 °C |
| Oscillator Frequency (Option A) | Typ. 700kHz |
| Oscillator Frequency (Option B) | Typ. 1.4MHz |
| UVLO Threshold Level | Typ. 1.9V/2.1V/2.8V by mask option |
| Reference Voltage Accuracy | High Reference Voltage Accuracy 1.5% |
Source: Ricoh R1212D Series Step-Up DC/DC Controller Datasheet
All Ricoh R1212D documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for the R1212D Series?
They are used as a Constant Voltage Power Source for portable equipment and for LCD and CCD.
From: Ricoh R1212D Series Step-Up DC/DC Controller Datasheet
How is the latch-type protection released?
The protection circuit is released by restarting with power-on when the voltage supplier is equal to or less than the UVLO detector threshold level.
From: Ricoh R1212D Series Step-Up DC/DC Controller Datasheet
Does the R1212D include an internal output transistor?
No, the R1212D does not include an internal output transistor and requires external components like a power MOS and inductor.
From: Ricoh R1212D Series PWM Step-up DC/DC Controller Datasheet
What oscillator frequencies are available for the R1212D Series?
The oscillator frequency can be selected from 300kHz, 700kHz, or 1.4MHz.
From: Ricoh R1212D Series PWM Step-up DC/DC Controller Datasheet
