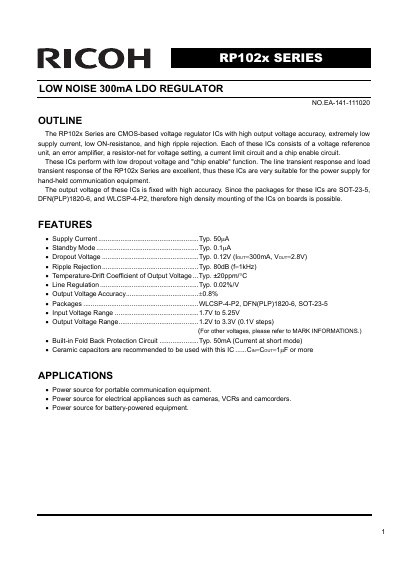

Ricoh RP102x Series Low Noise 300mA LDO Regulator Datasheet
The Ricoh RP102x Series are CMOS-based voltage regulator ICs designed for applications requiring high output voltage accuracy, extremely low supply current, and high ripple rejection. These ICs are suitable for power supplies in hand-held communication equipment, cameras, and other battery-powered devices. They feature a built-in fold-back protection circuit and are available in SOT-23-5, DFN(PLP)1820-6, and WLCSP-4-P2 packages.
Read onlineRicoh RP102X specifications
| Dropout Voltage | 0.12V (Iout=300mA, Vout=2.8V) |
|---|---|
| Ripple Rejection | 80dB (f=1kHz) |
| Temperature-Drift Coefficient | Typ. +20ppm/°C |
| Short Current Limit | Typ. 50mA |
Source: Ricoh RP102x Series Low Noise 300mA LDO Regulator Datasheet
All Ricoh RP102X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum input voltage for the RP102x series?
The maximum input voltage is 5.25V under normal conditions, though it can be operated up to 5.5V for a total of 500 hours.
From: Ricoh RP102x Series Low Noise 300mA LDO Regulator Datasheet
What are the available packages for the RP102x series?
The series is available in WLCSP-4-P2, DFN(PLP)1820-6, and SOT-23-5 packages.
From: Ricoh RP102x Series Low Noise 300mA LDO Regulator Datasheet
What is the maximum output current of the RP102x Series?
The RP102x Series features a 300mA output.
What is the typical supply current when the device is in standby mode?
The typical standby current is 0.1nA.
