Ricoh RP502X Manuals

ManualLib has 2 documents for the Ricoh RP502X: 2 datasheets. Every file can be read online or downloaded as a PDF for free.

Datasheet 2

Key facts

Brand
Ricoh
Model
RP502X
Industry
Industrial
Documents
2
Languages
EN
Last added
2012-07-10

Start here

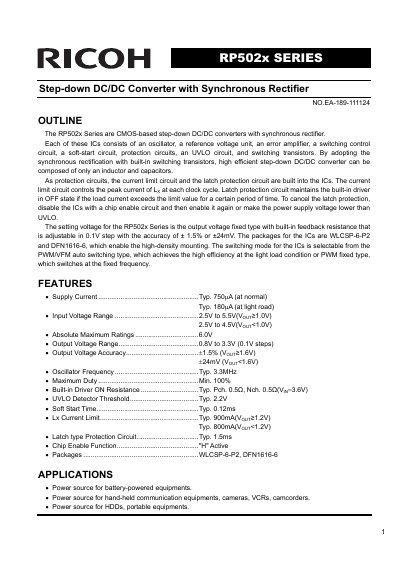

Ricoh RP502x Series Step-Down DC/DC Converter Datasheet

Ricoh RP502x Series Step-Down DC/DC Converter Datasheet

Datasheet 30 pages · 1.2 MB · EN

The RP502x Series are CMOS-based step-down DC/DC converters featuring a built-in synchronous rectifier to achieve high efficiency. The ICs integrate an oscillator, reference voltage unit, error amplifier, switching control circuit, soft-start circuit, and various protection circuits including current limit and latch protection.

These devices offer adjustable output voltages in 0.1V steps with an accuracy of +1.5% or +24mV. The switching mode is selectable between PWM/VFM auto switching for high efficiency at light loads and a fixed-frequency PWM type. Available packages include WLCSP-6-P2 and DFN1616-6, enabling high-density mounting.

Read online

Ricoh RP502X specifications

Supply Current (Typical)750uA (at normal), 180uA (at light load)
Output Voltage Range0.8V to 3.3V (0.1V steps)
Oscillator FrequencyTyp. 3.3MHz
Maximum Duty Cycle100%
Built-in Driver ON Resistance (Typ.)Pch. 0.5Ω, Nch. 0.5Ω
UVLO Detector Threshold (Typ.)2.2V
Soft Start Time (Typ.)0.12ms
Lx Current Limit (Typ.)900mA (Vout>=1.2V), 800mA (Vout<1.2V)
Latch Protection Circuit Delay (Typ.)1.5ms
Chip Enable Function'H' Active

Source: Ricoh RP502x Series Step-Down DC/DC Converter Datasheet

All Ricoh RP502X documents by type

Datasheet 2

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

What is the output voltage accuracy for the RP502x series?

The output voltage accuracy is +1.5% for voltages greater than or equal to 1.6V, and +24mV for voltages less than 1.6V.

From: Ricoh RP502x Series Step-Down DC/DC Converter Datasheet

What are the available packages for the RP502x series?

The available packages are WLCSP-6-P2 and DFN1616-6.

From: Ricoh RP502x Series Step-Down DC/DC Converter Datasheet

What input voltage range does the RP502x Series support?

It supports 2.5V to 5.5V for VOUT of 1.0V or higher, and 2.5V to 4.5V for VOUT below 1.0V.

From: Ricoh RP502x Series Step-down DC/DC Converter Datasheet

What packages are available for the RP502x Series?

The available packages are WLCSP-6-P2 and DFN1616-6.

From: Ricoh RP502x Series Step-down DC/DC Converter Datasheet
