Key facts
- Brand
- Ricoh
- Model
- R1215D
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-09
Start here

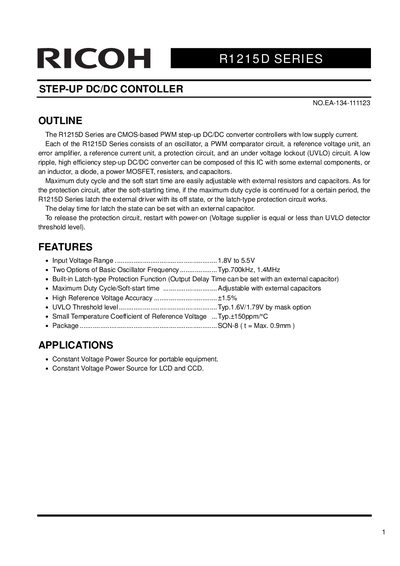

Ricoh R1215D Series Step-Up DC/DC Controller Datasheet
The Ricoh R1215D Series consists of CMOS-based PWM step-up DC/DC converter controllers with low supply current. The series includes an oscillator, PWM comparator circuit, reference voltage unit, error amplifier, reference current unit, protection circuit, and under voltage lockout (UVLO) circuit. A low ripple, high efficiency step-up DC/DC converter can be composed of this IC with some external components, or an inductor, a diode, a power MOSFET, resistors, and capacitors.
Read onlineRicoh R1215D specifications
| Oscillator Frequency | Typ. 700kHz, 1.4MHz |
|---|---|
| Operating Temperature Range | -40 to +85 °C |
| Open Loop Voltage Gain | 100 dB |
| Unity Gain Frequency Band | 1.0 MHz |
| Supply Current | 600 to 1800 pA |
Source: Ricoh R1215D Series Step-Up DC/DC Controller Datasheet
All Ricoh R1215D documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating temperature for this IC?
The device operates within a range of -40 to +85 °C.
From: Ricoh R1215D Series Step-Up DC/DC Controller Datasheet
What is the maximum supply current for option F?
The typical supply current is 1800 pA when the input voltage is 5.5V.
From: Ricoh R1215D Series Step-Up DC/DC Controller Datasheet
Does the R1215D include an internal output transistor?
No, the R1215D does not include an internal output transistor and requires external components like a power MOS to be configured.
From: Ricoh R1215D Series PWM Step-up DC/DC Controller Datasheet
How is the oscillator frequency selected?
The oscillator frequency can be selected from 700kHz or 1.4MHz.
From: Ricoh R1215D Series PWM Step-up DC/DC Controller Datasheet
