Ricoh R1224N Manuals

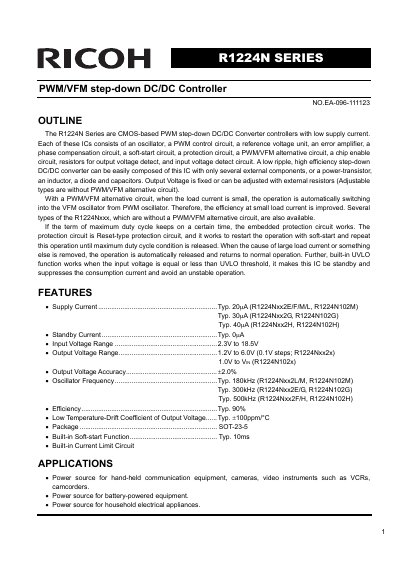

The R1224N Series are CMOS-based PWM step-down DC/DC Converter controllers with low supply current. Each of these ICs consists of an oscillator, a PWM control circuit, a reference voltage unit, an error amplifier, a phase compensation circuit, a soft-start circuit, a protection circuit, a PWM/VFM alternative circuit, a chip enable circuit, resistors for output voltage detect, and input voltage detect circuit. A low ripple, high efficiency step-down DC/DC converter can be easily composed of this IC with only several external components, or a power-transistor, an inductor, a diode and capacitors. Output Voltage is fixed or can be adjusted with external resistors (Adjustable types are without PWM/VFM alternative circuit). With a PWM/VFM alternative circuit, when the load current is small, the operation is automatically switching into the VFM oscillator from PWM oscillator. Therefore, the efficiency at small load current is improved. Several types of the R1224Nxxx, which are without a PWM/VFM alternative circuit, are also available. If the term of maximum duty cycle keeps on a certain time, the embedded protection circuit works. The protection circuit is Reset-type protection circuit, and it works to restart the operation with soft-start and repeat this operation until maximum duty cycle condition is released. When the cause of large load current or something else is removed, the operation is automatically stopped.

The R1224N Series are low supply current CMOS-based PWM/VFM step-down DC/DC controller with an external output transistor. By simply using a power transistor, an inductor, a diode, and a capacitor as external components, a high-efficiency step-down DC/DC converter can be easily configured. The PWM/VFM alternative circuit automatically switches to VFM control in the smaller output current range and provides high efficiency even in the smaller output current range. The version with fixed PWM control and adjustable output voltage with an external resistor is also available. The reset type protection circuit embedded into the device limits output current by repeatedly triggering the soft start circuit when the oscillator maximum duty cycle continues for a predetermined period of time. When the oscillator maximum duty cycle ends, normal operation is resumed automatically. R1224N also includes an under-voltage lockout circuit (UVLO) that stops DC/DC operation and prevents malfunction when the supply voltage falls below the UVLO detect voltage and reduces supply current.
