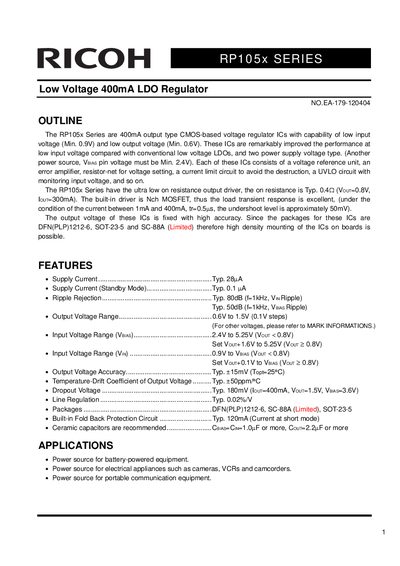

Ricoh RP105x Series Low Voltage LDO Regulator Datasheet
The Ricoh RP105x Series are 400mA output type CMOS-based voltage regulator ICs designed for low input voltage (minimum 0.9V) and low output voltage (minimum 0.6V). These devices offer improved performance at low voltages compared to conventional LDOs and include features such as a built-in fold-back protection circuit, UVLO monitoring, and high ripple rejection.
Read onlineRicoh RP105X specifications
| Output Current | 400 mA |
|---|---|
| Ripple Rejection | Typ. 80dB @ 1kHz |
| Packages | DFN(PLP)1212-6, SC-88A, SOT-23-5 |
| Short Current Limit | Typ. 120mA |
Source: Ricoh RP105x Series Low Voltage LDO Regulator Datasheet
All Ricoh RP105X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum input voltage for this regulator?
The ICs have a capability of low input voltage with a minimum of 0.9V.
From: Ricoh RP105x Series Low Voltage LDO Regulator Datasheet
What is the operating temperature range?
The operating temperature range is from -40 to 85 °C.
From: Ricoh RP105x Series Low Voltage LDO Regulator Datasheet
What is the output current of the RP105x Series?
The RP105x Series features a 400mA output.
What is the minimum input voltage?
The input voltage can correspond from 0.9V.
