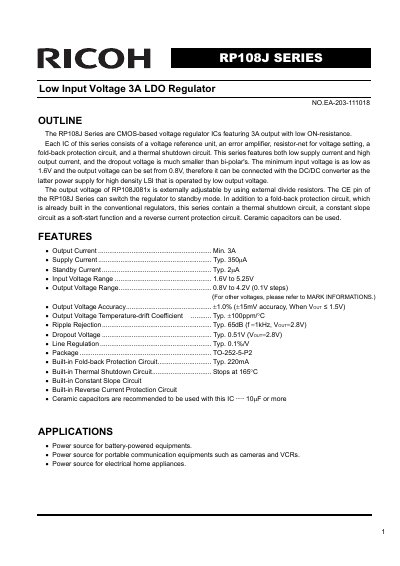

Ricoh RP108J Series Low Input Voltage 3A LDO Regulator Datasheet
The Ricoh RP108J Series are CMOS-based voltage regulator ICs featuring a 3A output current and low ON-resistance. Designed for high-density LSI applications, these regulators support a minimum input voltage as low as 1.6V and allow output voltage settings from 0.8V to 4.2V. The series includes both fixed and externally adjustable output voltage types.
Read onlineRicoh RP108J specifications
| Output Current | Min. 3A |
|---|---|
| Input Voltage Range | 1.6V to 5.25V |
| Output Voltage Accuracy | ±1.0% |
| Line Regulation | Typ. 0.1% |
| Package | TO-252-5-P2 |
| Operating Temperature | -40 to +85 °C |
Source: Ricoh RP108J Series Low Input Voltage 3A LDO Regulator Datasheet
All Ricoh RP108J documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum input voltage for the RP108J Series?
The minimum input voltage is as low as 1.6V.
From: Ricoh RP108J Series Low Input Voltage 3A LDO Regulator Datasheet
Can the RP108J Series be used with ceramic capacitors?
Yes, ceramic capacitors are recommended to be used with this IC.
From: Ricoh RP108J Series Low Input Voltage 3A LDO Regulator Datasheet
What is the output current of the RP108J Series?
The RP108J Series features a 3A output current.
From: Ricoh RP108J Series Low Voltage 3A LDO Regulator Product Leaflet
Can the output voltage be adjusted?
Yes, the RP108J081x model can set adjustable output voltage with an external resistor.
From: Ricoh RP108J Series Low Voltage 3A LDO Regulator Product Leaflet
