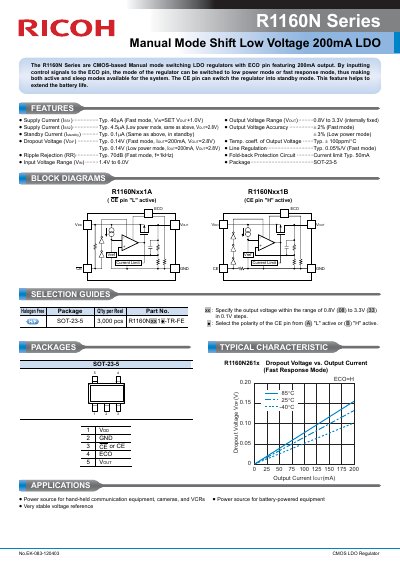

Ricoh R1160N Series CMOS LDO Regulator Datasheet
Datasheet 2 pages · 153 KB · EN
The Ricoh R1160N Series are CMOS-based Manual mode switching LDO regulators with an ECO pin that features a 200mA output. By inputting control signals to the ECO pin, the mode of the regulator can be switched to low power mode or fast response mode, making both active and sleep modes available for the system. Additionally, the CE pin can switch the regulator into standby mode to help extend battery life.
Read onlineRicoh R1160N specifications
| Output Current | 200mA |
|---|---|
| Output Voltage Range | 0.8V to 3.3V |
| Input Voltage Range | -1.4V to 6.0V |
| Package Type | SOT-23-5 |
| Output Voltage Accuracy | +/- 2% (Fast mode) |
| Line Regulation | Typ. 0.05%/V |
All Ricoh R1160N documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current of this regulator?
The R1160N Series provides a 200mA output.
What is the input voltage range for this device?
The input voltage must be between -1.4V and 6.0V.
How is the output voltage selected for the R1160N series?
Output voltage can be set stepwise in 0.1 V increments over a range of 0.8 V to 3.3 V.
What is the maximum output current the device can deliver?
The device can deliver up to 250 mA of output current.
