Key facts
- Brand
- Ricoh
- Model
- RP503X
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-10
Start here

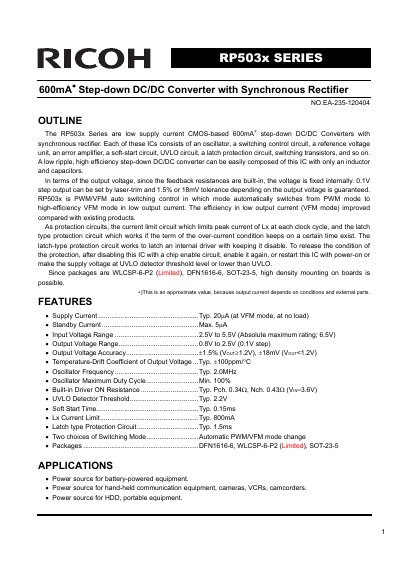

Ricoh RP503x Series Step-Down DC/DC Converter Datasheet
The Ricoh RP503x Series consists of low supply current CMOS-based 600mA step-down DC/DC converters with a synchronous rectifier. These ICs integrate an oscillator, switching control circuit, reference voltage unit, error amplifier, soft-start circuit, and UVLO circuit. The series features built-in feedback resistors allowing for a fixed output voltage with 0.1V steps, and includes an automatic switching mode that transitions from PWM to high-efficiency VFM mode at low output currents.
Read onlineRicoh RP503X specifications
| Input Voltage Range | 2.5V to 5.5V |
|---|---|
| Oscillator Frequency | 2.0MHz |
| Operating Temperature Range | -40 to 85 °C |
Source: Ricoh RP503x Series Step-Down DC/DC Converter Datasheet
All Ricoh RP503X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the RP503x support auto-switching modes?
Yes, it uses PWM/VFM auto switching control that switches from PWM mode to high-efficiency VFM mode in low output current.
From: Ricoh RP503x Series Step-Down DC/DC Converter Datasheet
What are the available package types for the RP503x?
The available packages are WLCSP-6-P2, DFN1616-6, and SOT-23-5.
From: Ricoh RP503x Series Step-Down DC/DC Converter Datasheet
What is the output voltage range of the RP503x?
The output voltage range is internally fixed between 0.8V and 2.5V.
From: Ricoh RP503x Series Step-down DC/DC Converter Datasheet
Does the RP503x include protection circuits?
Yes, it includes a soft start circuit, an under-voltage lockout circuit (UVLO), and a latch protection circuit.
From: Ricoh RP503x Series Step-down DC/DC Converter Datasheet
