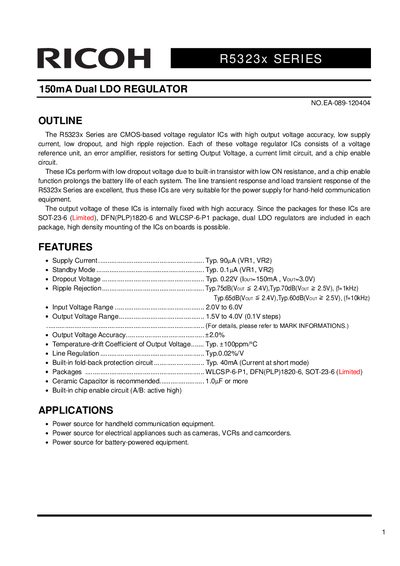

KICOH R5323x Series 150mA Dual LDO Regulator Datasheet
The KICOH R5323x Series consists of CMOS-based voltage regulator ICs designed for high output voltage accuracy and low supply current. Each package contains a dual LDO regulator, making them suitable for high-density mounting on boards. Key features include a typical supply current of 90nA, a dropout voltage as low as 0.22V at 150mA, and a chip enable circuit to prolong battery life.
Read onlineRicoh R5323X specifications
| Supply Current | Typ. 90nA |
|---|---|
| Standby Current | Typ. 0.1uA |
| Dropout Voltage | Typ. 0.22V |
| Ripple Rejection | Typ. 75dB |
| Output Voltage Range | 1.5V to 4.0V |
| Output Current | 150 mA |
| Input Voltage Range | 2.0V to 6.0V |
| Operating Temperature Range | -40 to 85 C |
Source: KICOH R5323x Series 150mA Dual LDO Regulator Datasheet
