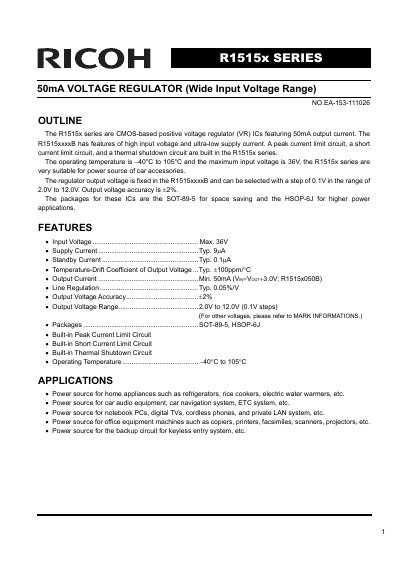

Ricoh R1515x Series Voltage Regulator IC Datasheet
The Ricoh R1515x series consists of positive voltage regulator (VR) ICs based on CMOS technology. These devices feature a high input voltage range up to 36V and an ultra-low supply current, making them suitable for power sources in car accessories and various electronic equipment. The output voltage is fixed or selectable with 0.1V steps between 2.0V and 12.0V.
Read onlineRicoh R1515X specifications
| Output Current | 50mA (Min) |
|---|---|
| Input Voltage Range | 4V to 36V |
| Operating Temperature | -40°C to 105°C |
| Output Voltage Range | 2.0V to 12.0V |
| Output Voltage Accuracy | +/- 2% |
All Ricoh R1515X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the built-in protection circuits?
The R1515x series includes a peak current limit circuit, a short current limit circuit, and a thermal shutdown circuit.
What is the maximum input voltage?
The maximum input voltage for the R1515x series is 36V.
What is the maximum input voltage rating?
The absolute maximum rating for input voltage is 50V, with a peak input voltage of 60V.
Does this regulator have thermal protection?
Yes, it contains a thermal shutdown circuit that stops operation when the junction temperature exceeds 150°C.
