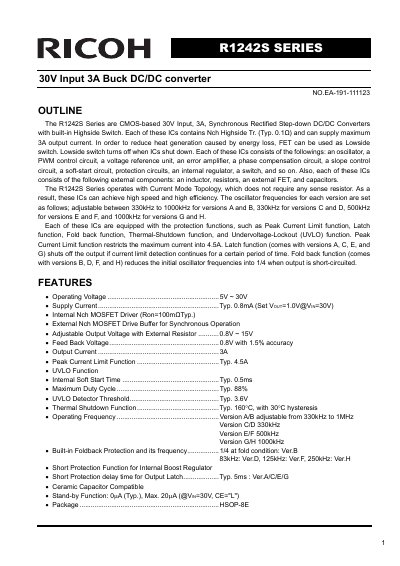

Ricoh R1242S Series 30V Input 3A Buck DC/DC Converter Datasheet

Datasheet 25 pages · 580 KB · EN

The Ricoh R1242S Series are CMOS-based synchronous rectified step-down DC/DC converters with a built-in high-side switch. These ICs are designed to supply a maximum 3A output current and operate with a current mode topology that does not require a sense resistor, achieving high speed and efficiency. The series supports an operating voltage range of 5V to 30V and includes various protection functions such as peak current limit, latch, fold back, thermal shutdown, and undervoltage lockout.

Read online

Ricoh R1242S specifications

Operating Voltage	5V ~ 30V
Supply Current	Typ. 0.8mA
Output Current	3A
Peak Current Limit	Typ. 4.5A
Adjustable Output Voltage	0.8V ~ 15V
Feedback Voltage Accuracy	1.5%
Soft Start Time	Typ. 0.5ms
Maximum Duty Cycle	Typ. 88%
Thermal Shutdown Temperature	Typ. 160°C
Operating Temperature Range	-40 ~ 85 °C
