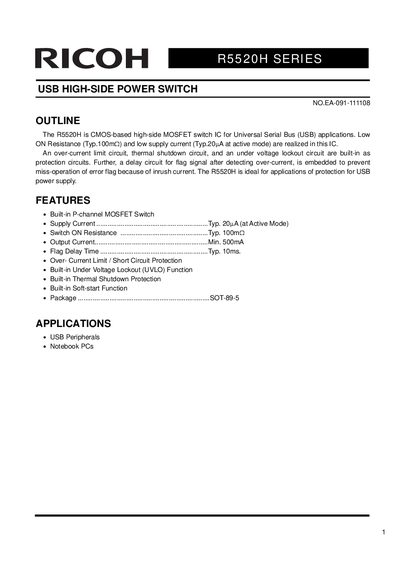

Ricoh R5520H USB High-Side Power Switch Datasheet
The Ricoh R5520H is a CMOS-based high-side MOSFET switch IC designed for Universal Serial Bus (USB) applications. It features a low ON resistance of typically 100mΩ and low supply current of typically 20µA in active mode. The device includes built-in protection circuits such as over-current limit, thermal shutdown, and under-voltage lockout (UVLO), along with a delay circuit for the flag signal to prevent misoperation due to inrush current.
Read onlineRicoh R5520H specifications
| Switch ON Resistance (Typ.) | 100mΩ |
|---|---|
| Supply Current (Active Mode) | Typ. 20µA |
| Output Current | Min. 500mA |
| Flag Delay Time (Typ.) | 10ms |
| Operating Temperature Range | -40 to 85 °C |
| Package Type | SOT-89-5 |
| Input Voltage (Vin) | 4.0 to 5.5 V |
All Ricoh R5520H documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical supply current in active mode?
The typical supply current in active mode is 20µA.
What is the typical switch ON resistance?
The typical switch ON resistance is 100mΩ.
What are the main protection features of the R5520H?
The R5520H includes a built-in current limit circuit, thermal shutdown circuit, and under-voltage lockout circuit (UVLO).
What is the typical supply current when the device is enabled?
The typical supply current when enabled is 20µA.
