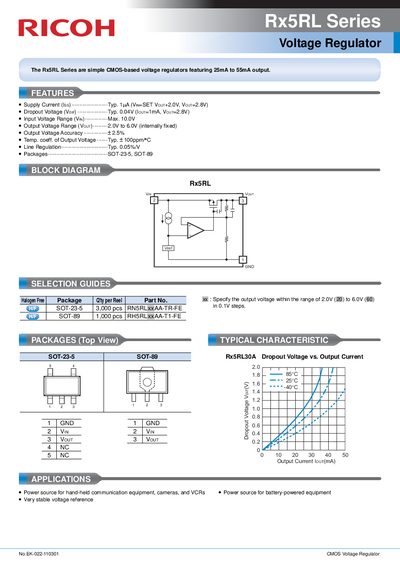

Ricoh Rx5RL Series CMOS Voltage Regulator Datasheet
The Ricoh Rx5RL Series are simple CMOS-based voltage regulators designed to provide a stable output current ranging from 25mA to 55mA. These devices are intended for use as power sources for hand-held communication equipment, cameras, VCRs, and other battery-powered equipment requiring a very stable voltage reference.
Read onlineRicoh RX5RL specifications
| Quiescent Current (RX5RL30A) | 1.14 µA |
|---|---|
| Dropout Voltage (RX5RL50A) | 30 mV |
| Maximum Output Current | 150 mA |
| Power Dissipation (SOT‑89) | 800 mW |
All Ricoh RX5RL documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What are the typical applications for the Rx5RL Series?
They are used as power sources for hand-held communication equipment, cameras, and VCRs.
What is the output current range for the Rx5RL Series voltage regulators?
The regulators provide an output current ranging from 25mA to 55mA.
What is the typical quiescent current of the RX5RL30A?
Typical quiescent current is 1.14 µA at VIN = 5.0 V.
Which package types are available for the RX5RL series?
The series is offered in TO‑92, SOT‑89 (Mini‑power Mold) and SOT‑23‑5 (Mini‑mold) packages.
