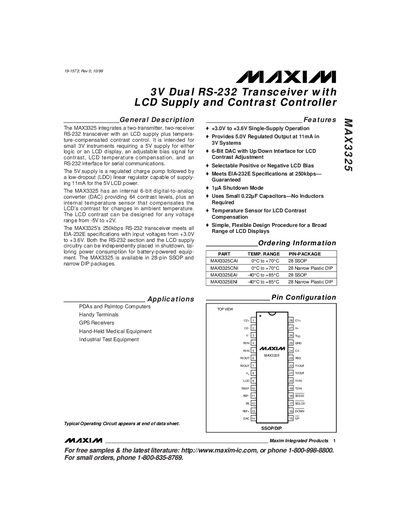

Maxim MAX3325 3V Dual RS-232 Transceiver with LCD Supply and Contrast Controller Datasheet
The MAX3325 is a 3 V dual RS‑232 transceiver that integrates an LCD supply, a temperature‑compensated contrast controller, and a 6‑bit DAC. It is designed for small battery‑powered instruments such as PDAs, handheld terminals, GPS receivers, medical equipment, and industrial test gear, providing a regulated 5 V output at up to 11 mA and selectable LCD bias.
The device includes independent shutdown control for the RS‑232 and LCD sections, a charge‑pump based dual‑voltage regulator, and a full set of pin functions for easy integration. It is offered in 28‑pin SSOP and narrow‑DIP packages and meets EIA‑232E specifications up to 250 kbps.
Maxim MAX3325 specifications
| Supply Voltage Range | 3.0 V to 3.6 V |
|---|---|
| Regulated 5 V Output Current | 11 mA |
| DAC Resolution | 6‑bit (64 levels) |
| LCD Bias Selection | Positive or Negative |
| Package Types | 28‑pin SSOP, narrow‑DIP |
Source: Maxim MAX3325 3V Dual RS-232 Transceiver with LCD Supply and Contrast Controller Datasheet
All Maxim MAX3325 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the MAX3325 require?
It operates from a single supply of 3.0 V to 3.6 V.
From: Maxim MAX3325 3V Dual RS-232 Transceiver with LCD Supply and Contrast Controller Datasheet
How much current can the internal 5 V regulator provide?
The internal regulator can supply up to 11 mA of 5 V output.
From: Maxim MAX3325 3V Dual RS-232 Transceiver with LCD Supply and Contrast Controller Datasheet
What supply voltage does the MAX3325 operate from?
It operates from a single supply of 3.0 V to 3.6 V.
From: Maxim MAX3325 3V Dual RS-232 Transceiver with LCD Supply and Contrast Controller Datasheet
How many contrast levels does the internal DAC provide?
The internal 6‑bit DAC provides 64 contrast levels.
From: Maxim MAX3325 3V Dual RS-232 Transceiver with LCD Supply and Contrast Controller Datasheet
