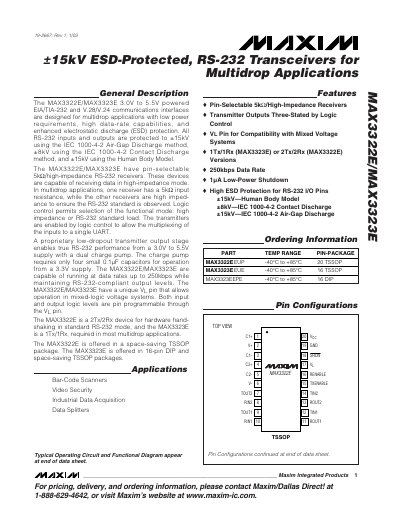

Maxim MAX3322E/MAX3323E RS-232 Transceiver Datasheet
The Maxim MAX3322E and MAX3323E are low‑power RS‑232 transceivers designed for multidrop applications. They operate from a 3.0 V to 5.5 V supply, provide pin‑selectable 5 kΩ or high‑impedance receiver inputs, and feature a separate VL logic‑level supply for mixed‑voltage systems.
Both devices include a dual charge‑pump that generates ±5.5 V output levels, deliver up to 250 kbps data rates, and are protected against up to ±15 kV ESD (Human Body Model). The MAX3322E offers a 2 Tx/2 Rx configuration in a 20‑pin TSSOP package, while the MAX3323E provides a 1 Tx/1 Rx version in 16‑pin DIP or TSSOP packages.
Maxim MAX3322E specifications
| Supply current (normal operation) | 1 mA |
|---|---|
| Supply voltage range (VCC) | 3.0 V to 5.5 V |
| ESD protection (Human Body Model) | ±15 kV |
| Receiver input resistance option | 5 kΩ or high‑impedance |
Source: Maxim MAX3322E/MAX3323E RS-232 Transceiver Datasheet
All Maxim MAX3322E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range do these transceivers operate from?
They operate from a VCC of 3.0 V to 5.5 V.
How many pins does the MAX3322E package have?
The MAX3322E is offered in a 20‑pin TSSOP package.
What is the shutdown current consumption?
In shutdown mode the supply current is less than 10 µA.
From: Maxim MAX3322E/MAX3323E RS-232 Transceiver Multidrop Applications Manual
