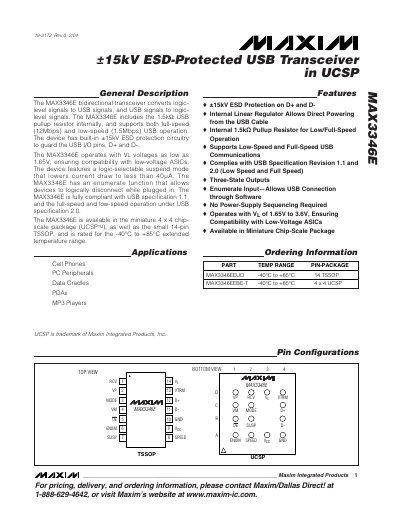

Maxim MAX3346E USB Bidirectional Transceiver Datasheet
The MAX3346E converts logic‑level signals to USB signals and vice‑versa. It includes an internal 1.5 kΩ pull‑up resistor, a linear regulator that provides a 3.3 V output, and a logic‑selectable suspend mode that reduces current draw to under 40 µA.
The device operates from 1.65 V to 3.6 V on the system side and from 4.0 V to 5.5 V on the USB side, supporting both full‑speed (12 Mbps) and low‑speed (1.5 Mbps) USB specifications. It is offered in a 4 × 4 mm UCSP package and a 14‑pin TSSOP package, and is rated for –40 °C to +85 °C operation.
Maxim MAX3346E specifications
| Operating Temperature Range | -40°C to +85°C |
|---|---|
| Supply Voltage (VCC) | -0.3 V to +6 V |
| Input Voltage (D+, D-) | -0.3 V to +6 V |
| ESD Protection (D+, D-) | ±15 kV (Human Body Model) |
| Suspend Mode Current Draw | < 40 µA |
| Internal Linear Regulator Output | 3.3 V |
| USB Pull‑up Resistor | 1.5 kΩ |
Source: Maxim MAX3346E USB Bidirectional Transceiver Datasheet
All Maxim MAX3346E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How much current does the device draw in suspend mode?
The suspend mode draws less than 40 µA.
From: Maxim MAX3346E USB Bidirectional Transceiver Datasheet
What is the ESD protection rating of the MAX3346E?
The device provides ±15 kV ESD protection on the D+ and D‑ pins.
From: Maxim MAX3346E USB Bidirectional Transceiver Datasheet
What is the ESD protection rating of the MAX3346E?
The device provides +15 kV ESD protection on the D+ and D‑ pins.
What supply voltages does the MAX3346E support?
VL can be supplied from 1.65 V to 3.6 V, while VCC operates from 4.0 V to 5.5 V.
