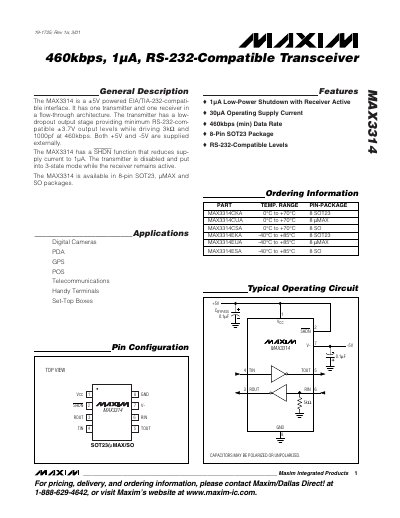

Maxim MAX3314 RS-232-Compatible Transceiver Datasheet
The MAX3314 provides a single transmitter and receiver in a flow‑through architecture, delivering RS‑232‑compatible ±3.7 V output levels while driving 3 kΩ and 1000 pF loads at up to 460 kbps. It operates from external ±5 V supplies and includes a shutdown (SHDN) function that reduces supply current to 1 µA while keeping the receiver active.
The device is offered in 8‑pin SOT‑23, µMAX and SO packages and features low operating currents (30 µA typical in shutdown) and a wide temperature range (‑40 °C to +85 °C for some packages). Detailed electrical, timing, and package specifications are provided for designers.
Maxim MAX3314 specifications
| Data Rate (minimum) | 460 kbps |
|---|---|
| Shutdown Supply Current (no load) | 1 µA |
| Positive Supply Current (SHDN, no load) | 30 µA min, 100 µA typ |
| Operating Temperature Range (C) | 0 °C to +70 °C (standard), –40 °C to +85 °C (extended) |
| Package Types | 8‑pin SOT‑23, µMAX, SO |
Source: Maxim MAX3314 RS-232-Compatible Transceiver Datasheet
All Maxim MAX3314 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the shutdown current of the MAX3314?
In shutdown mode the supply current is reduced to about 1 µA.
Which package options are offered for the MAX3314?
The device is offered in 8‑pin SOT‑23, µMAX and SO packages.
What is the shutdown supply current of the MAX3314?
The shutdown supply current is 1 pA when SHDN is low.
Which package options are offered for the MAX3314?
The MAX3314 is available in 8‑pin SOT23, uMAX, and SO packages.
