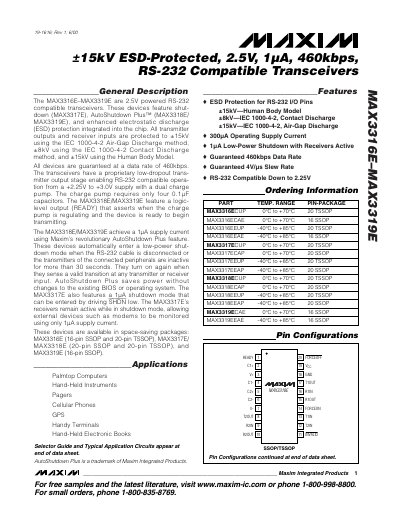

Maxim MAX3316E–MAX3319E RS-232 Transceiver Datasheet
The MAX3316E–MAX3319E family are 2.5 V powered RS‑232 compatible transceivers featuring shutdown (MAX3317E), AutoShutdown Plus™ (MAX3318E/MAX3319E), and enhanced ESD protection. They operate over a supply range of +2.25 V to +3.0 V, guarantee a 460 kbps data rate, and include a dual charge‑pump that requires only four 0.1 µF capacitors.
Available in compact SSOP and TSSOP packages, the devices support a wide range of applications such as handheld computers, pagers, and GPS terminals. Key functional blocks include inverting transmitters, active‑low receivers, a READY logic‑level output, and an INVALID signal for detecting the absence of valid RS‑232 levels. The family also offers a low‑power shutdown mode with supply current below 1 µA while keeping receivers active.
Maxim MAX3319E specifications
| Supply Voltage Range | +2.25 V to +3.0 V |
|---|---|
| Maximum Data Rate | 460 kbps |
| ESD Protection (Human Body Model) | ±15 kV |
| Shutdown Supply Current | < 1 µA |
| Slew Rate | 4 V/µs |
Source: Maxim MAX3316E–MAX3319E RS-232 Transceiver Datasheet
All Maxim MAX3319E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate of the MAX3316E–MAX3319E transceivers?
The devices are guaranteed to operate at a data rate of 460 kbps.
How much supply current is drawn in shutdown mode?
In shutdown mode the supply current drops to less than 1 µA while the receivers remain active.
What is the purpose of the READY output on MAX3318E/MAX3319E?
READY goes high when the charge pumps are active and V‑ goes below –2.75 V, indicating the device is ready to transmit.
From: Maxim MAX3316E‑MAX3319E RS‑232 Compatible Transceivers Datasheet
