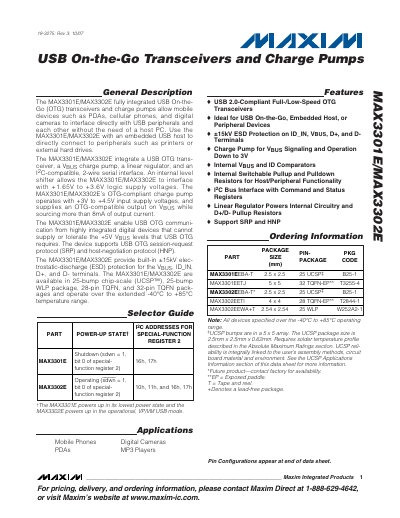

Maxim MAX3301E/MAX3302E USB On-the-Go Transceiver and Charge Pump Datasheet
The MAX3301E and MAX3302E are fully integrated USB On‑the‑Go transceivers that combine a charge pump, linear regulator, and I2C‑compatible 2‑wire serial interface. They enable mobile devices such as PDAs, phones, and digital cameras to communicate directly with USB peripherals without a host PC.
Key features include support for SRP and HNP protocols, ±15 kV ESD protection on all USB pins, operation from +1.65 V to +3.6 V logic supplies, and VBUS output capability of more than 8 mA. The devices are offered in UCSP, WLP, and TQFN packages and operate over –40 °C to +85 °C.
Maxim MAX3302E specifications
| Supply Voltage (VCC) | 3.0 V – 4.5 V |
|---|---|
| Logic Supply Voltage (VL) | 1.65 V – 3.60 V |
| VBUS Output Current | 8 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| ESD Protection | ±15 kV on ID_IN, VBUS, D+, D‑ |
