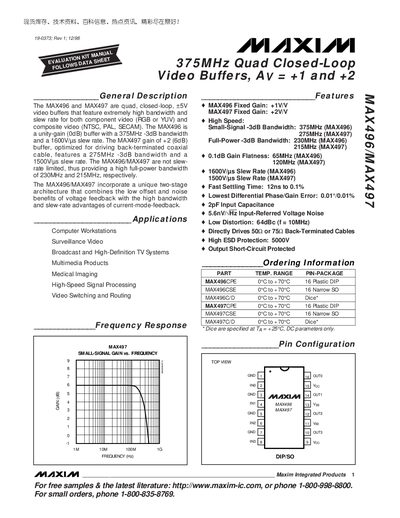

Maxim Integrated MAX496/MAX497 Video Buffer Datasheet
The MAX496 and MAX497 are quad, closed‑loop video buffer amplifiers designed for component (RGB or YUV) and composite video applications. They provide very high bandwidth and slew‑rate performance, with the MAX496 offering a unity‑gain (+1 V/V) configuration and the MAX497 a fixed gain of +2 V/V.
These devices are intended for use in computer workstations, surveillance video, broadcast and high‑definition TV systems, multimedia products, medical imaging, high‑speed signal processing, video switching and routing, and other high‑performance video applications. The datasheet details electrical characteristics, pin configurations, layout recommendations, and package options.
Maxim MAX496 specifications
| Small‑signal -3dB bandwidth (MAX496) | 375 MHz |
|---|---|
| Full‑power -3dB bandwidth (MAX496) | 230 MHz |
| Gain (MAX496) | +1 V/V |
| Gain (MAX497) | +2 V/V |
| Input capacitance | 2 pF |
Source: Maxim Integrated MAX496/MAX497 Video Buffer Datasheet
All Maxim MAX496 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What type of device are the MAX496 and MAX497?
They are quad, high‑speed, closed‑loop video buffer ICs for component and composite video signals.
Which applications are the MAX496/MAX497 suitable for?
Computer workstations, surveillance video, broadcast and high‑definition TV systems, multimedia products, medical imaging, high‑speed signal processing, and video switching and routing.
