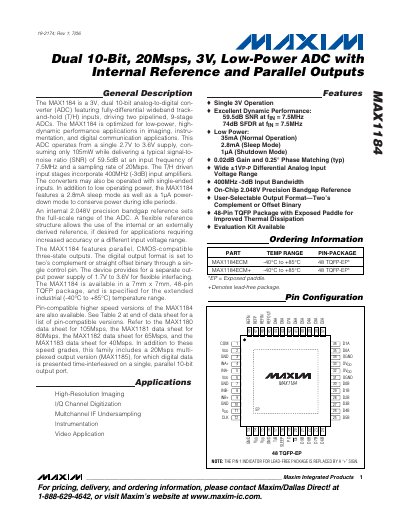

The MAX1184 is a 3 V, dual 10‑bit analog‑to‑digital converter featuring fully‑differential wideband track‑and‑hold inputs and parallel three‑state CMOS outputs. It operates from a single 2.7 V to 3.6 V supply and includes a 2.048 V precision bandgap reference with selectable internal or external reference.
Key specifications include a typical SNR of 59.5 dB at 7.5 MHz, 74 dB SFDR, ±1 V differential input range, and low power consumption (105 mW normal, 2.8 mA sleep, 1 µA shutdown). The device is offered in a 48‑pin TQFP package (7 mm × 7 mm) and operates over –40 °C to +85 °C.
| Supply Voltage Range | 2.7 V to 3.6 V |
|---|---|
| Power Consumption (Normal) | 105 mW |
| Typical SNR | 59.5 dB at 7.5 MHz |
| SFDR | 74 dB at 7.5 MHz |
| Differential Input Voltage Range | ±1 V P‑P |
| Package | 48‑pin TQFP, 7 mm × 7 mm |
| Operating Temperature Range | -40 °C to +85 °C |
The MAX1184 operates from a single 2.7 V to 3.6 V supply.
It provides a typical SNR of 59.5 dB at an input frequency of 7.5 MHz.
Yes, it includes a 2.8 mA sleep mode and a 1 µA power‑down mode.
The device is offered in a 48‑pin TQFP package measuring 7 mm × 7 mm.
