MAXIM MAX1183 Dual 10-Bit 40Msps 3V Low-Power ADC with Internal Reference Parallel Outputs handbook

The MAX1183 is a 3V, dual 10-bit analog-to-digital converter (ADC) featuring fully differential wideband track- and-hold (T/H) inputs, driving two pipelined, nine-stage ADCs. The MAX1183 is optimized for low-power, high dynamic performance applications in imaging, instrumen- tation, and digital communication applications. This ADC operates from a single 2.7V to 3.6V supply, consuming only 120mW while delivering a typical signal-to-noise ratio (SNR) of 59.6dB at an input frequency of 20MHz and a sampling rate of 40Msps. The T/H driven input stages incorporate 400MHz (-3dB) input amplifiers. The convert- ers may also be operated with single-ended inputs. In addition to low operating power, the MAX1183 features a 2.8mA sleep mode as well as a 1µA power-down mode to conserve power during idle periods. An internal 2.048V precision bandgap reference sets the full-scale range of the ADC. A flexible reference structure allows the use of this internal or an externally derived reference, if desired for applications requiring increased accuracy or a different input voltage range. The MAX1183 features parallel, CMOS-compatible three-state outputs. The digital output format can be set to two’s complement or straight offset binary through a single control pin. The device provides for a separate output power supply of 1.7V to 3.6V for flexible interfac- ing. The MAX1183 is available in a 7mm ✕ 7mm, 48-pin TQFP package, and is specified for the extended industrial (-40°C to 125°C) temperature range.

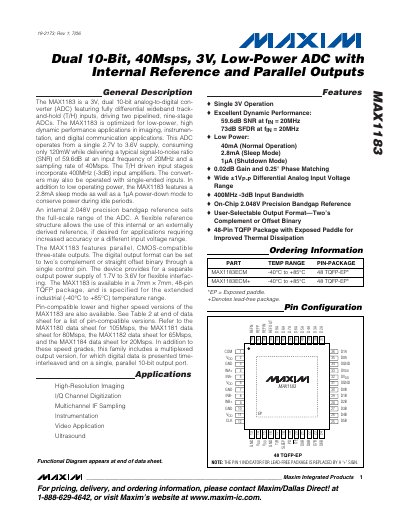

MAXIM MAX1183 Dual 10-Bit 40Msps 3V Low-Power ADC with Internal Reference Parallel Outputs handbook - cover page
Brand
Maxim
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
18
File format
PDF
File size
337 KB
Published
07 May, 2012
Updated
01 October, 2023
Model
40MSPS
MD5 checksum
175C9CB88D37CC321CAECF6283357034

About this manual

The MAX1183 is a 3 V, dual 10‑bit analog‑to‑digital converter featuring fully differential wideband track‑and‑hold inputs and parallel CMOS‑compatible three‑state outputs. It operates from a single 2.7 V to 3.6 V supply and includes a precision 2.048 V bandgap reference that can be used internally or replaced with an external reference.

Key specifications include a 40 Msps maximum conversion rate, 59.6 dB SNR at 20 MHz input, 120 mW typical power consumption in normal mode, and a 48‑pin TQFP‑EP package rated for –40 °C to +85 °C. The device offers selectable output format (two’s complement or offset binary) and supports low‑power sleep and shutdown modes.

What's inside

  • General Description
  • Electrical Characteristics
  • Absolute Maximum Ratings
  • Pin Description
  • Detailed Description
  • Performance Graphs
  • Power Requirements
  • Layout Guidelines
  • Reference Design

Specifications

Supply Voltage Range2.7 V to 3.6 V
Resolution10 bits
Maximum Sample Rate40 Msps
Package48‑pin TQFP‑EP, 7 mm × 7 mm

Frequently asked questions

What is the operating supply voltage range for the MAX1183?

The device operates from 2.7 V to 3.6 V analog supply voltage.

Can the output data format be changed?

Yes, the output format can be set to two’s complement or straight offset binary via a single control pin.

What is the internal reference voltage of the MAX1183?

The internal reference is a 2.048 V precision bandgap.
