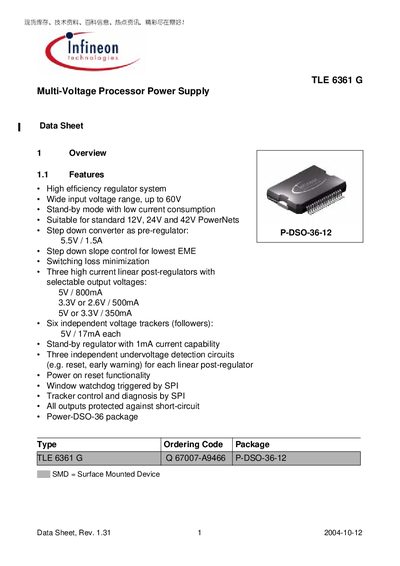

The data sheet introduces the characteristics of TLE 6361 G, including high efficiency, wide input voltage range, low power consumption, suitable for standard 12V, 24V and 42V PowerNets, selectable output voltages, independent undervoltage detection circuits, etc.
The TLE 6361 G is a multi‑voltage power‑supply system designed for automotive applications using 12 V, 24 V or 42 V power nets. It provides regulated rails for 5 V, 3.3 V and 2.6 V to power 32‑bit micro‑controllers and external sensors.
Key features include a 5.5 V/1.5 A pre‑regulator, three linear post‑regulators with selectable outputs, six independent voltage trackers, a low‑power standby mode, SPI‑controlled tracking and diagnostics, and protection against short‑circuits. The device is offered in a P‑DSO‑36‑12 package.
| Input voltage range | up to 60 V |
|---|---|
| Pre‑regulator output | 5.5 V / 1.5 A |
| Linear post‑regulator outputs | 5 V / 800 mA, 3.3 V / 500 mA, 2.6 V / 350 mA |
| Voltage tracker outputs | Six trackers, 5 V / 17 mA each |
| Stand‑by regulator current | ≤ 1 mA (typical 30 µA) |
It accepts a wide input voltage range up to 60 V.
The device provides six independent voltage trackers, each delivering 5 V at up to 17 mA.
