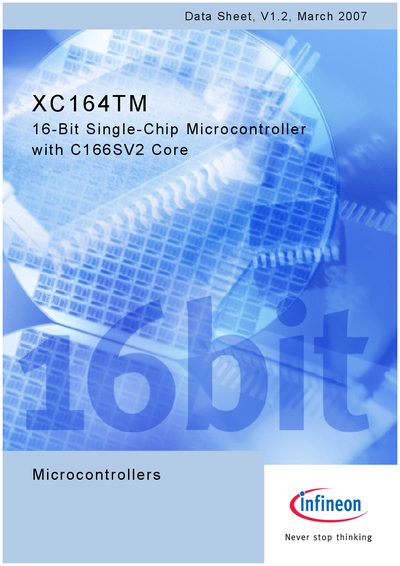

This is a product datasheet from Infineon Technologies AG, which describes the features and characteristics of the XC164TM 16-bit single-chip microcontroller.
The XC164TM is a 16‑bit single‑chip microcontroller featuring a C166SV2 core, up to 40 MHz CPU clock and a rich set of on‑chip peripherals. It offers a flexible memory architecture with up to 128 KB flash, multiple SRAM blocks, and a dual‑port RAM for high‑speed data exchange.
The device includes a 14‑channel A/D converter, multiple serial interfaces, a 16‑priority‑level interrupt system supporting up to 63 sources, and extensive power‑management modes. Various package options are available, and the data sheet provides detailed electrical, timing, and reliability specifications.
| Instruction Cycle Time | 25 ns at 40 MHz |
|---|---|
| Total Linear Address Space | 16 Mbytes |
| On‑Chip Flash Memory | up to 128 KB |
| Dual‑Port RAM | 2 KB |
| A/D Converter | 14 channels, 10‑bit or 8‑bit resolution |
| Interrupt Sources | up to 63 |
The instruction cycle time is 25 ns at a 40 MHz CPU clock.
The device provides up to 128 KB of on‑chip flash memory.
It supports up to 63 interrupt sources within a 16‑priority‑level system.
