Extech MN15A/MN16A Mini MultiMeters are affordable compact sized multimeters with Type K Temperature measurments and Autoranging model with advanced functions including Capacitance and Frequency.

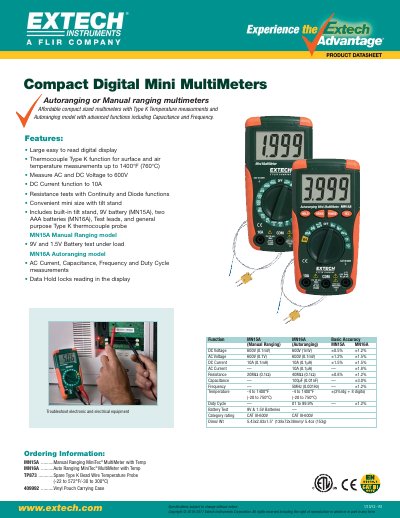

This document provides ordering information and specifications for the Extech MN15A Manual Ranging and MN16A Autoranging MiniTec MultiMeters. Both models include Type K temperature measurements and are designed for troubleshooting electronic and electrical equipment.
| DC Voltage Range | 600V |
|---|---|
| AC Voltage Range | 600V |
| DC Current Range | 10A |
| AC Current Range | 10A |
| Resistance Range | 20MΩ / 40MΩ |
| Capacitance Range | 100μF |
| Frequency Range | 5MHz |
| Temperature Range | -4 to 1400°F |
| Category Rating | CAT III-600V |
| Dimensions | 5.43x2.83x1.5" |
The MN15A is a Manual Ranging model, while the MN16A is an Autoranging model that includes AC Current, Capacitance, Frequency, and Duty Cycle measurements.
Yes, the MN15A includes a 9V battery and the MN16A includes two AAA batteries.
The set includes a general purpose Type K thermocouple probe.
