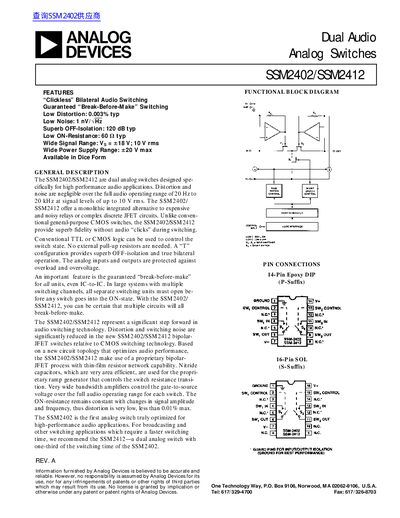

Analog Devices SSM2402/SSM2412 Dual Audio Analog Switches Datasheet
The SSM2402/SSM2412 are dual analog switches designed specifically for high-performance audio applications. They offer a monolithic integrated alternative to relays or discrete JFET circuits, providing superb fidelity with negligible distortion and noise over the full audio operating range of 20 Hz to 20 kHz at signal levels up to 10 V rms.
Read onlineAnalog Devices SSM2402 specifications
| Distortion (THD) | 0.003% typ |
|---|---|
| Noise Density | 1 nV/ √ Hz |
| OFF-Isolation | 120 dB typ |
| Operating Temperature Range | -40 °C to +85 °C |
Source: Analog Devices SSM2402/SSM2412 Dual Audio Analog Switches Datasheet
All Analog Devices SSM2402 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the switching guaranteed to be clickless?
Yes, the device features guaranteed 'Break-Before-Make' switching and is designed for 'Clickless' Bilateral Audio Switching.
From: Analog Devices SSM2402/SSM2412 Dual Audio Analog Switches Datasheet
What is the maximum analog voltage range?
The analog voltage range is from -14.2 V to +14.2 V.
From: Analog Devices SSM2402/SSM2412 Dual Audio Analog Switches Datasheet
What is the turn‑on time for the SSM2402?
The SSM2402 turn‑on time is 10.0 ms.
From: Analog Devices SSM2402/SSM2412 Dual Audio Analog Switch Handbook
What OFF‑isolation level does the device provide?
The device provides 120 dB typical OFF‑isolation.
From: Analog Devices SSM2402/SSM2412 Dual Audio Analog Switch Handbook
