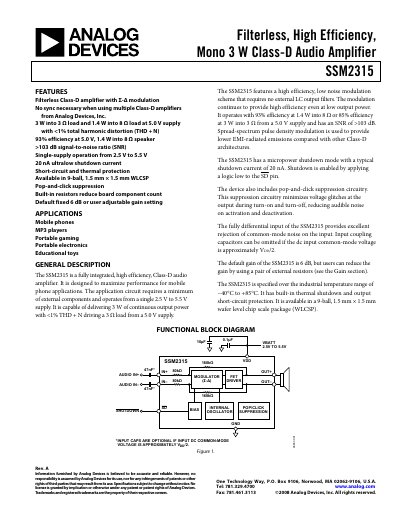

Analog Devices SSM2315 Datasheet
The SSM2315 is a filterless, high‑efficiency Class‑D audio amplifier designed for mobile phone and portable electronics applications. It operates from a single 2.5 V to 5.5 V supply and provides up to 3 W continuous output into a 3 Ω load while maintaining <1 % total harmonic distortion.
The device includes built‑in pop‑and‑click suppression, short‑circuit and thermal protection, and a default 6 dB gain that can be adjusted with external resistors. Detailed specifications, pin descriptions, layout guidelines, and ordering information are provided in the document.
Analog Devices SSM2315 specifications
| Output Power (8 Ω, 5 V) | 1.4 W |
|---|---|
| Shutdown Current | 20 nA |
| Gain | 6 dB (default) |
Source: Analog Devices SSM2315 Datasheet
All Analog Devices SSM2315 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the SSM2315 require external output filters?
No, the SSM2315 is a filterless Class‑D amplifier and does not need external LC output filters.
What is the typical shutdown current of the SSM2315?
The device has a typical shutdown current of 20 nA.
