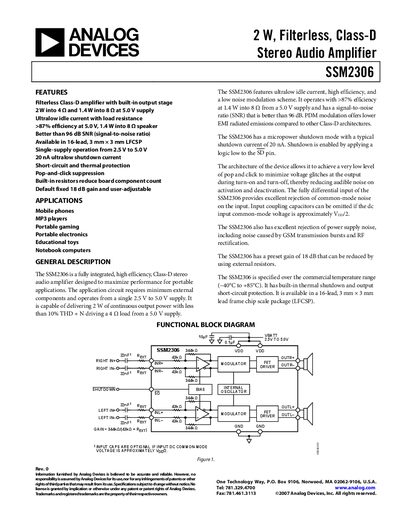

Analog Devices SSM2306 Datasheet
The SSM2306 from Analog Devices is a fully integrated Class‑D stereo audio amplifier designed for portable applications. It operates from a single 2.5 V to 5.0 V supply and delivers up to 2 W into a 4 Ω load with >87% efficiency. The device features ultralow shutdown current, pop‑and‑click suppression, and built‑in short‑circuit and thermal protection.
The datasheet provides detailed specifications, pin configurations, typical performance curves, and absolute maximum ratings. It also includes application notes for mobile phones, MP3 players, portable gaming, and notebook computers.
Analog Devices SSM2306 specifications
| Efficiency at 1.4 W (8 Ω) | 85 % |
|---|---|
| Shutdown Current | 20 nA |
| Supply Voltage Range | 2.5 V – 5.0 V |
| Signal‑to‑Noise Ratio | ≥96 dB |
All Analog Devices SSM2306 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical shutdown current of the SSM2306?
The device has a typical shutdown current of 20 nA.
What supply voltage range does the SSM2306 support?
It operates from a single supply voltage of 2.5 V to 5.0 V.
