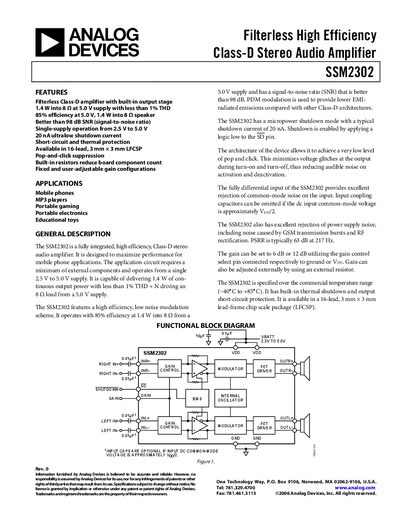

Analog Devices SSM2302 Class-D Stereo Audio Amplifier Datasheet
The SSM2302 from Analog Devices is a fully integrated, filter‑less Class‑D stereo audio amplifier designed for mobile and portable electronics. It operates from a single 2.5 V to 5.0 V supply and delivers up to 1.4 W into an 8 Ω load with less than 1 % THD.
Key features include built‑in pop‑and‑click suppression, ultra‑low 20 nA shutdown current, selectable 6 dB or 12 dB gain, and high‑efficiency operation (85 % at 1.4 W). The device is offered in a 16‑lead 3 mm × 3 mm LFCSP package.
Analog Devices SSM2302 specifications
| Output Power | 1.4 W into 8 Ω at 5.0 V |
|---|---|
| Signal‑to‑Noise Ratio | > 98 dB |
| Shutdown Current | 20 nA |
| Supply Voltage Range | 2.5 V to 5.0 V |
| Gain Options | 6 dB or 12 dB selectable |
Source: Analog Devices SSM2302 Class-D Stereo Audio Amplifier Datasheet
All Analog Devices SSM2302 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the shutdown current of the SSM2302?
The device has an ultralow shutdown current of 20 nA.
From: Analog Devices SSM2302 Class-D Stereo Audio Amplifier Datasheet
What supply voltage range does the SSM2302 support?
It operates from a single supply of 2.5 V to 5.0 V.
From: Analog Devices SSM2302 Class-D Stereo Audio Amplifier Datasheet
What is the shutdown current of the SSM2302?
The SSM2302 has a typical shutdown current of 20 nA.
What supply voltage range does the SSM2302 support?
It operates from a single‑supply voltage of 2.5 V to 5.0 V.
