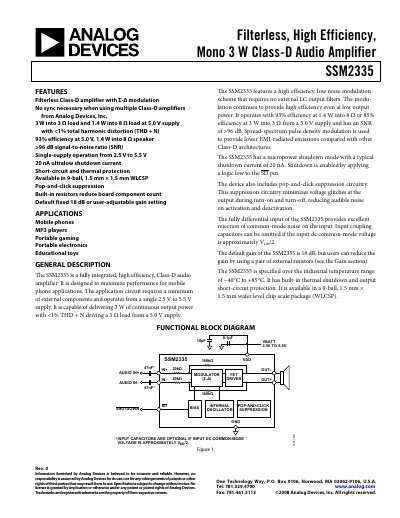

Analog Devices SSM2335 Class‑D Audio Amplifier Datasheet
The SSM2335 is a fully integrated Class‑D audio amplifier designed for mobile phone and portable electronics applications. It delivers up to 3 W continuous output power without external LC output filters, using Σ‑Δ modulation for low noise and high efficiency.
Typical applications include mobile phones, MP3 players, portable gaming devices and educational toys. The device features built‑in pop‑and‑click suppression, short‑circuit and thermal shutdown, and a default gain of 18 dB that can be adjusted with external resistors.
Analog Devices SSM2335 specifications
| Output Power | 3 W into 3 Ω at 5 V |
|---|---|
| Efficiency | 93 % at 5 V, 1.4 W into 8 Ω |
| THD+N | <1 % at 1 W into 8 Ω |
| Shutdown Current | 20 nA typical |
| Gain | Default 18 dB, adjustable |
Source: Analog Devices SSM2335 Class‑D Audio Amplifier Datasheet
All Analog Devices SSM2335 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the shutdown current of the SSM2335?
The device has a typical shutdown current of 20 nA.
From: Analog Devices SSM2335 Class‑D Audio Amplifier Datasheet
What is the default gain setting?
The default gain is 18 dB, and it can be reduced with external resistors.
From: Analog Devices SSM2335 Class‑D Audio Amplifier Datasheet
What is the supply voltage range for the SSM2335?
The device operates from a single supply voltage of 2.5 V to 5.5 V.
What is the shutdown current of the SSM2335?
The SSM2335 has an ultralow shutdown current of 20 nA.
